MI9 Microscope – Precision in detail for the FP9 record-cutting lathe
The MI9 Microscope was specially developed for the FP9 record-cutting lathe and sets new standards in precision and user-friendliness. It enables exact analysis of the cutting pattern so you can perfectly adjust groove spacing and cutting depth – for top-tier vinyl quality at the highest level.
MI9
The Microscope

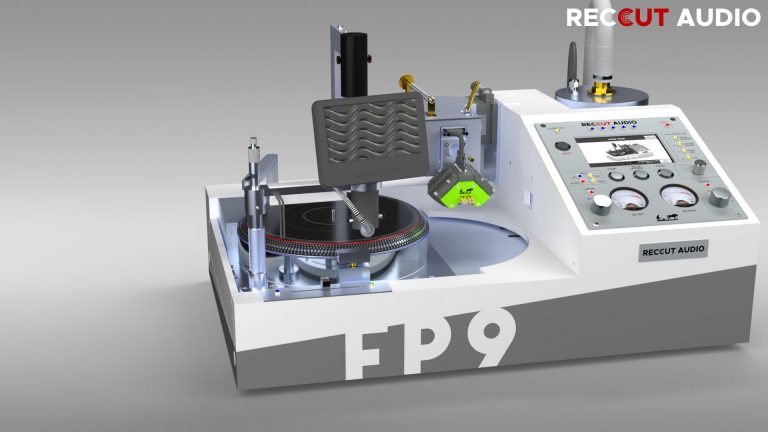

FP9 Main UNIT with the MI9 Microscope
DIGITAL PRECISION MEETS BRILLIANT IMAGE QUALITY
The MI9 is a digital microscope with a large 7-inch HDMI display that delivers razor-sharp real-time images.
Thanks to three interchangeable lenses and 3x digital zoom, you can view a wide range of details with impressive clarity.
Lens A – Ideal for viewing grooves during cutting.
Magnification: 18x to 720x, Working distance: 12–320 mm
Lens D – Perfect for analyzing the cutting diamond.
Magnification: 1800x to 2000x, Working distance: 4–5 mm
Lens L – For external or general-purpose work.
Magnification: 60x to 240x, Working distance: 90–300 mm

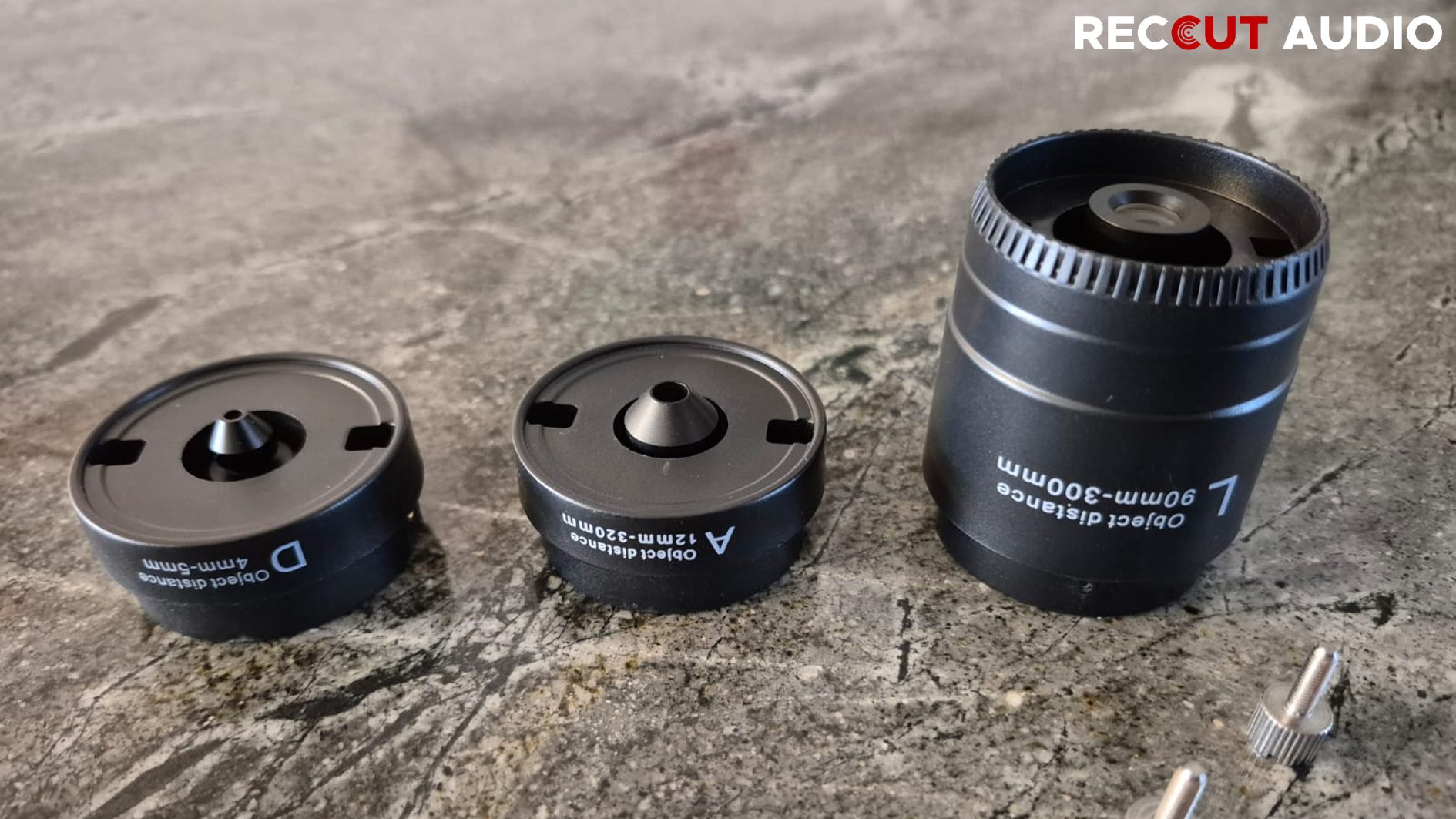

LENS D, A and L
FLEXIBLE LIGHTING AND INTUITIVE OPERATION
An LED lamp with a gooseneck mount provides flexible, precise illumination from any angle and distance.
Zoom, brightness, and image capture can be conveniently controlled via the screen or the wireless remote control.
An additional wired remote allows quick access to basic functions such as power on/off and LED control.

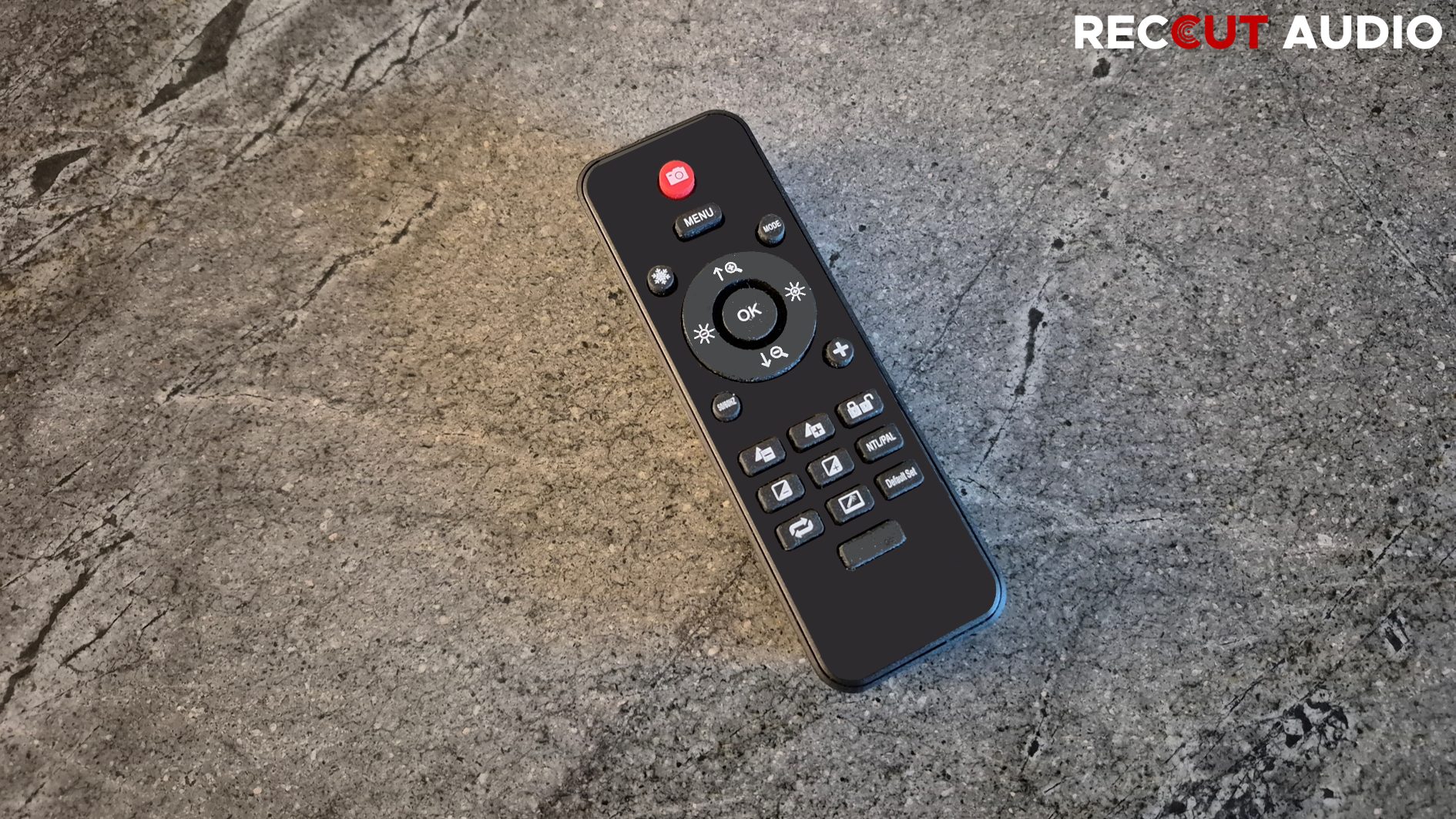

REMOTE CONTROL
CAPTURE, STORE, ANALYZE
The MI9 can save images and videos directly to an SD card.
With the free software, recordings can be calibrated and measured – for example, groove width, spacing, or wave structures.
This provides precise visual control of every cut.

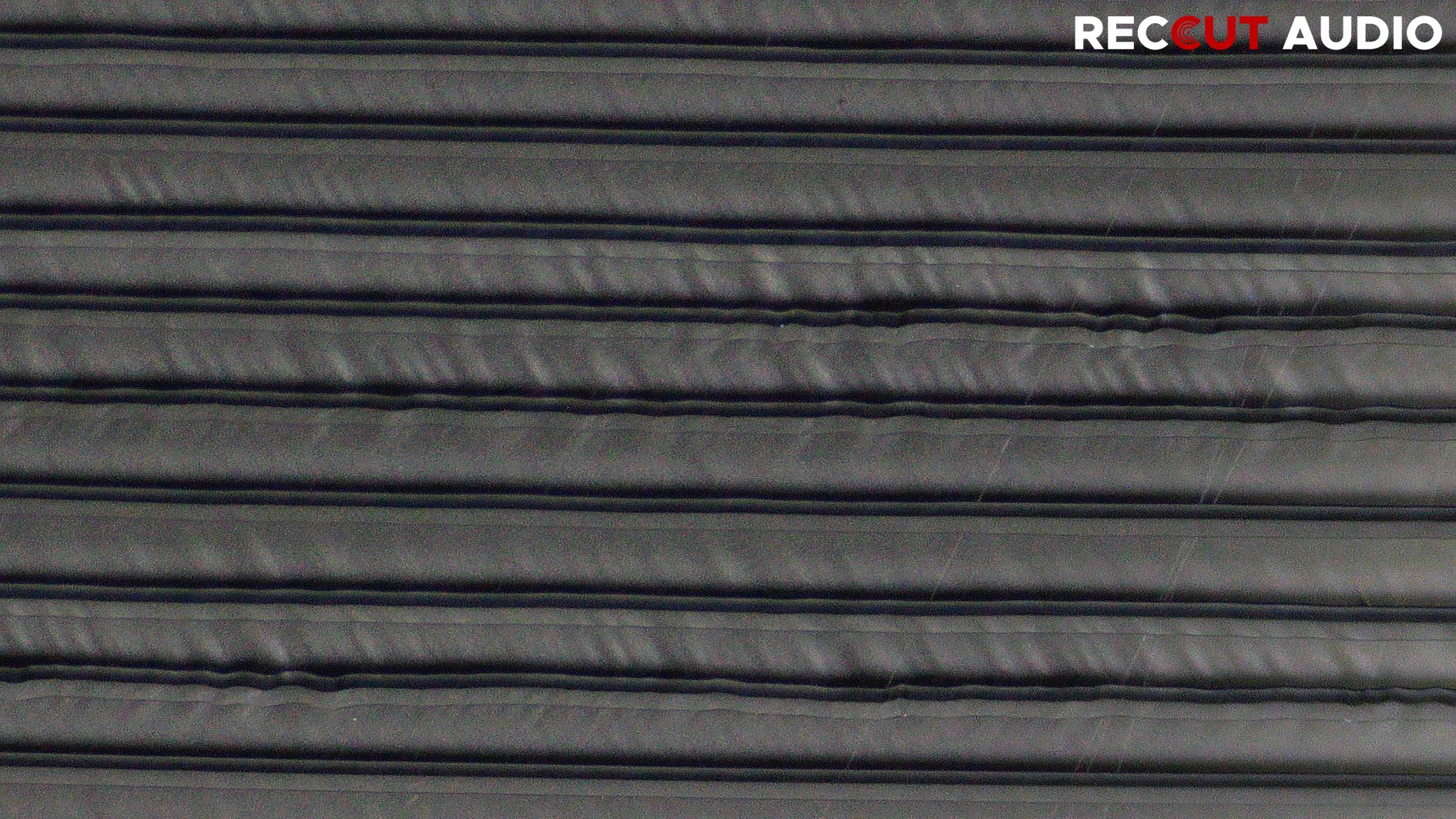

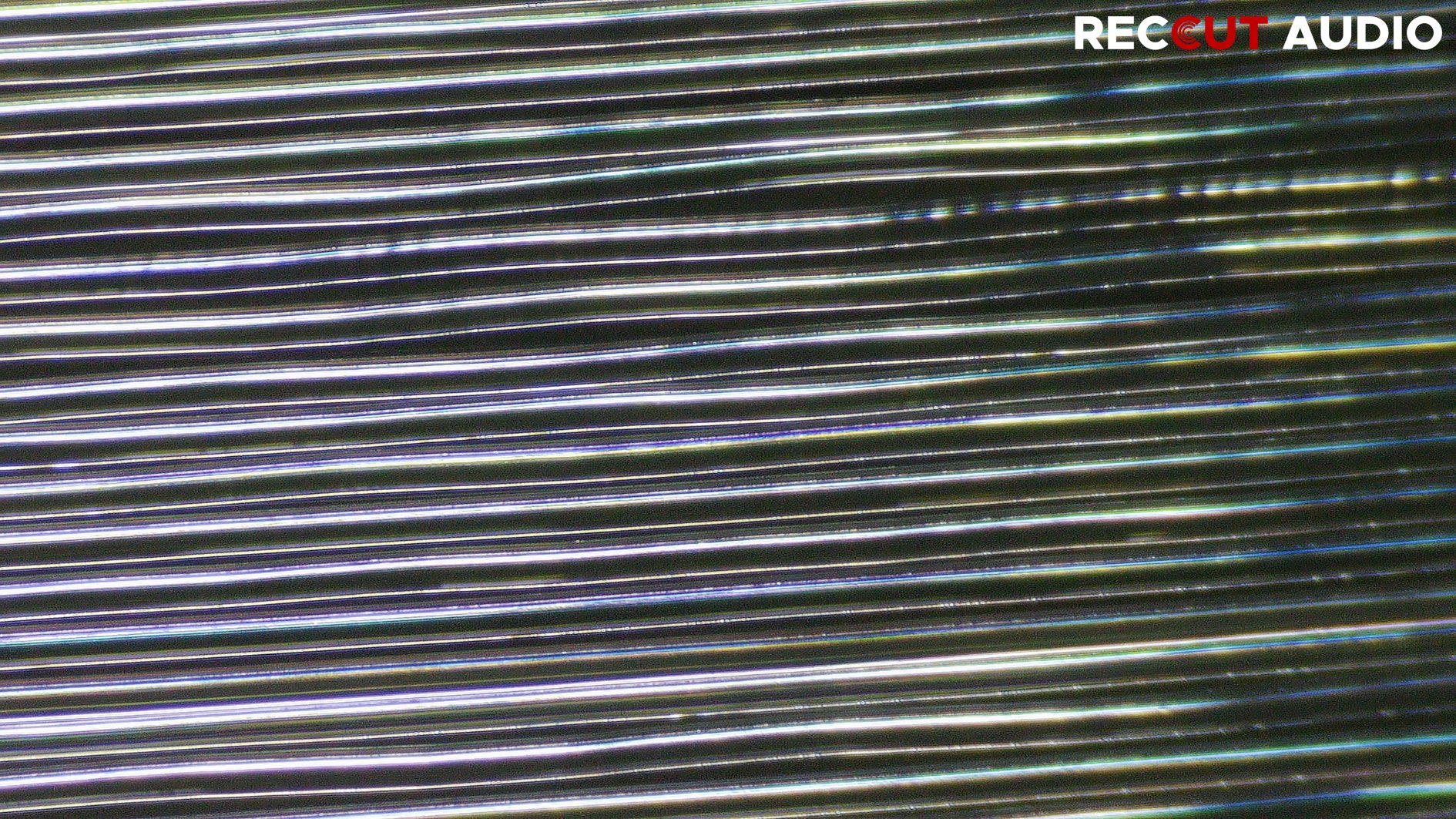

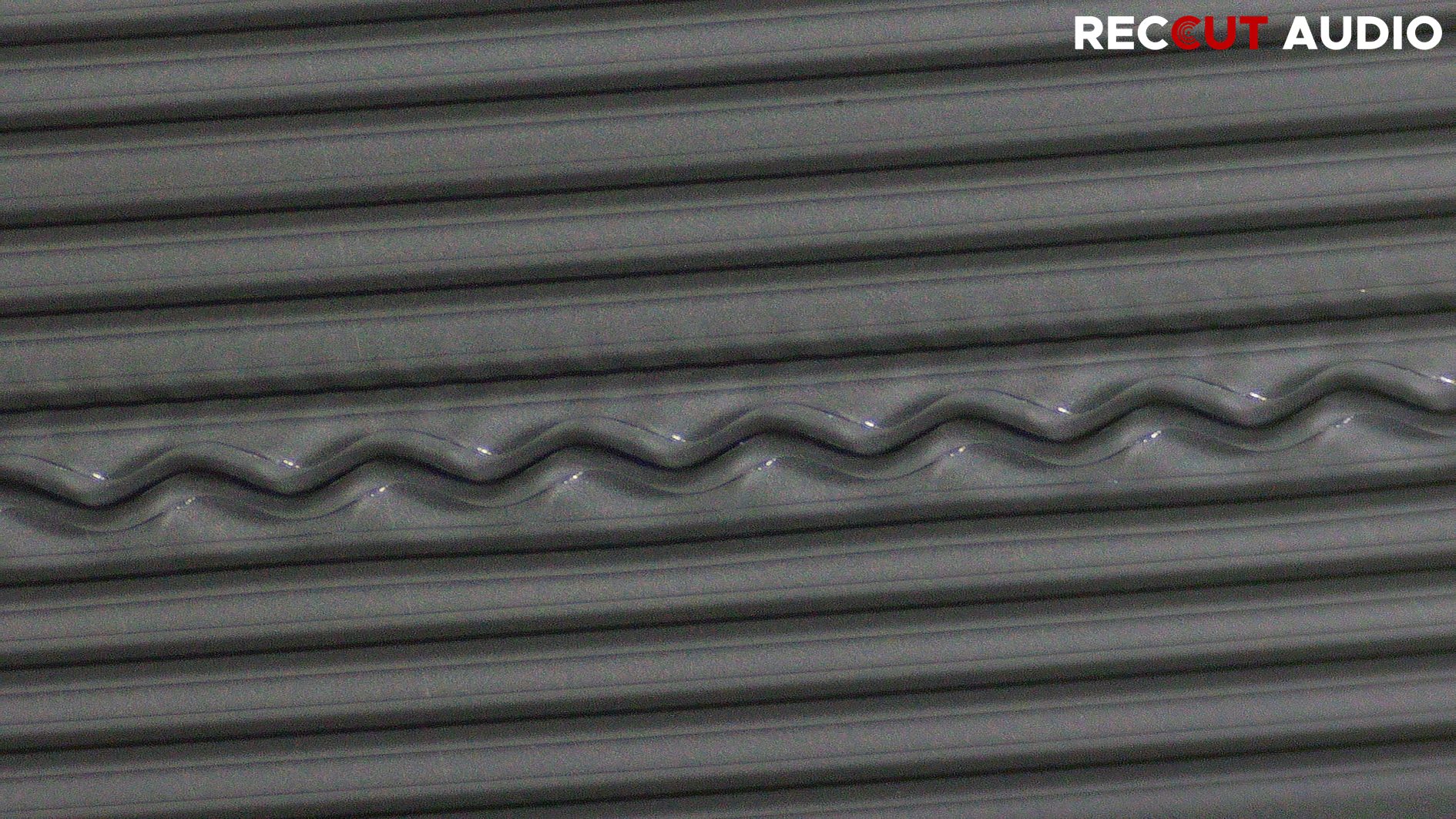

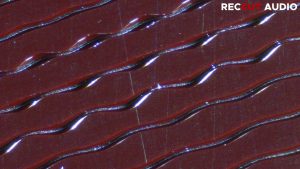

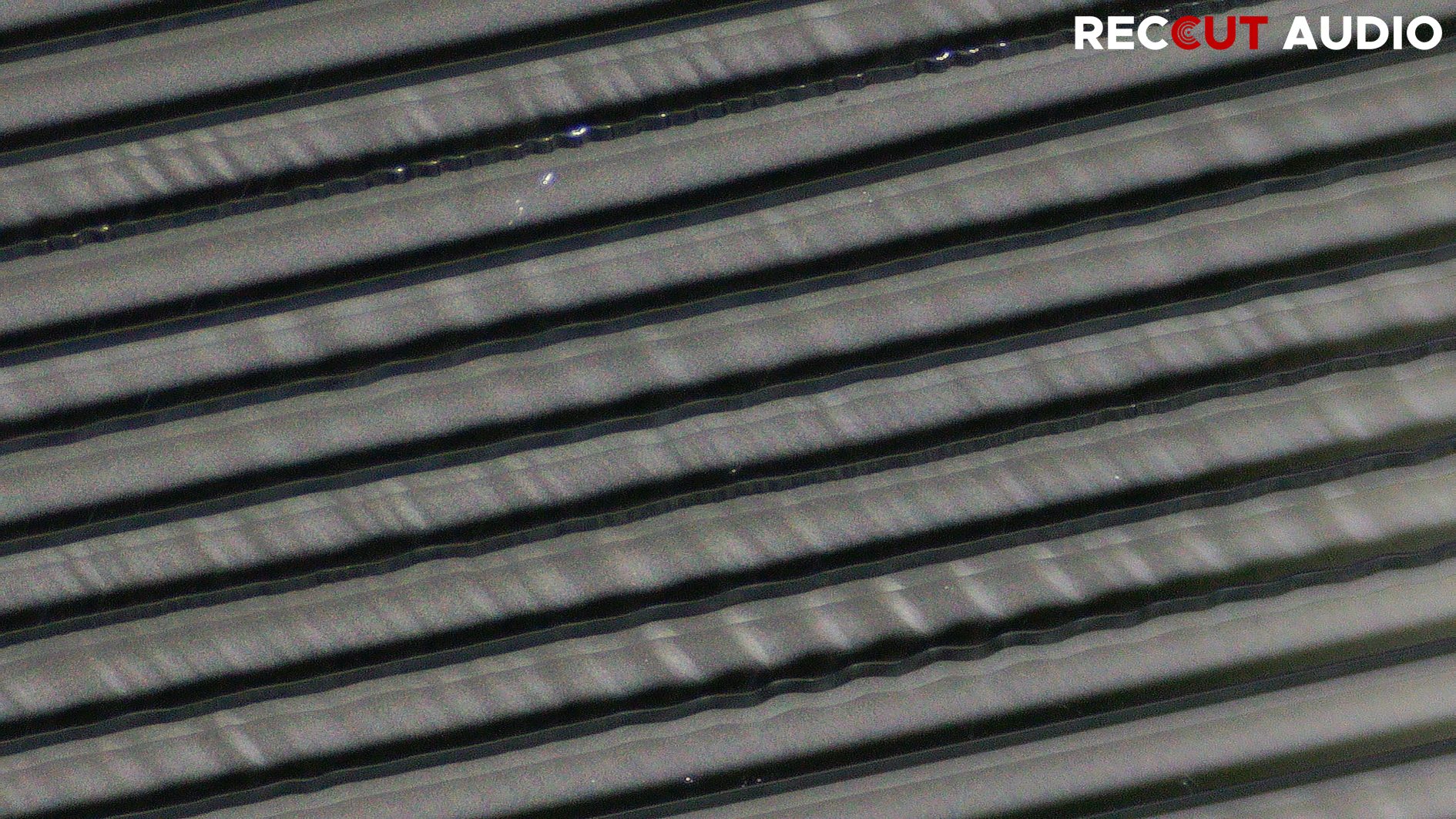

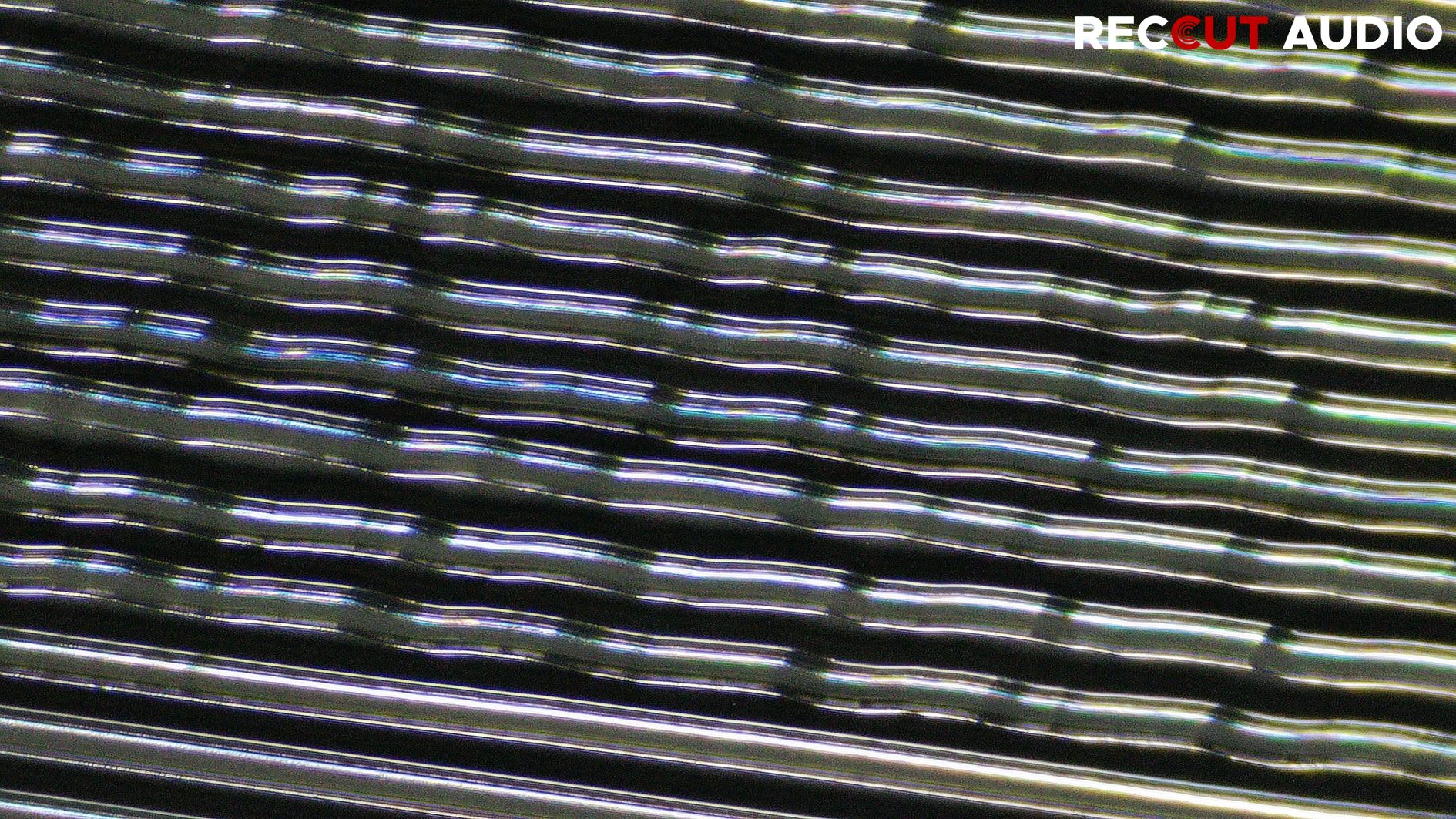

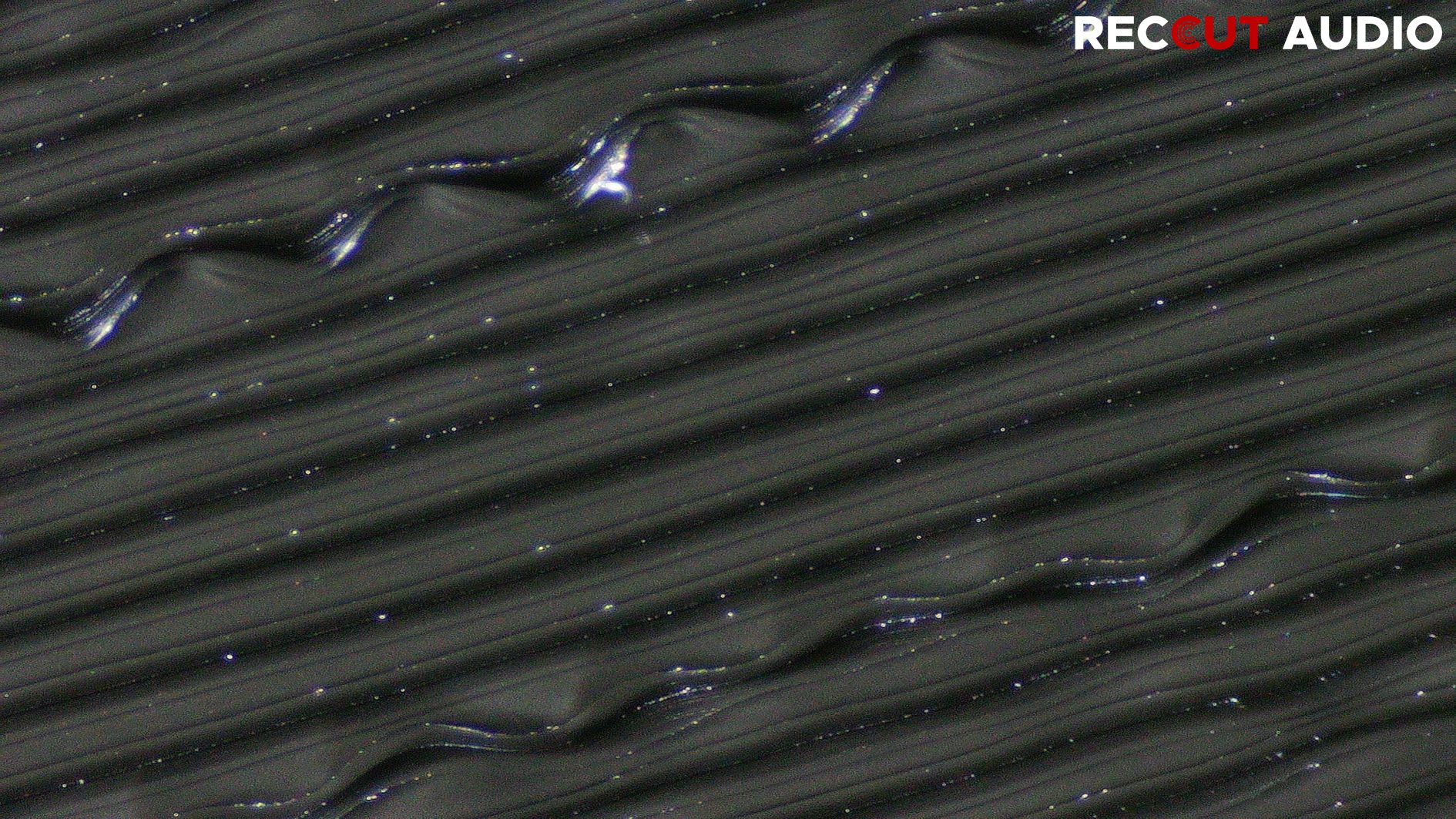

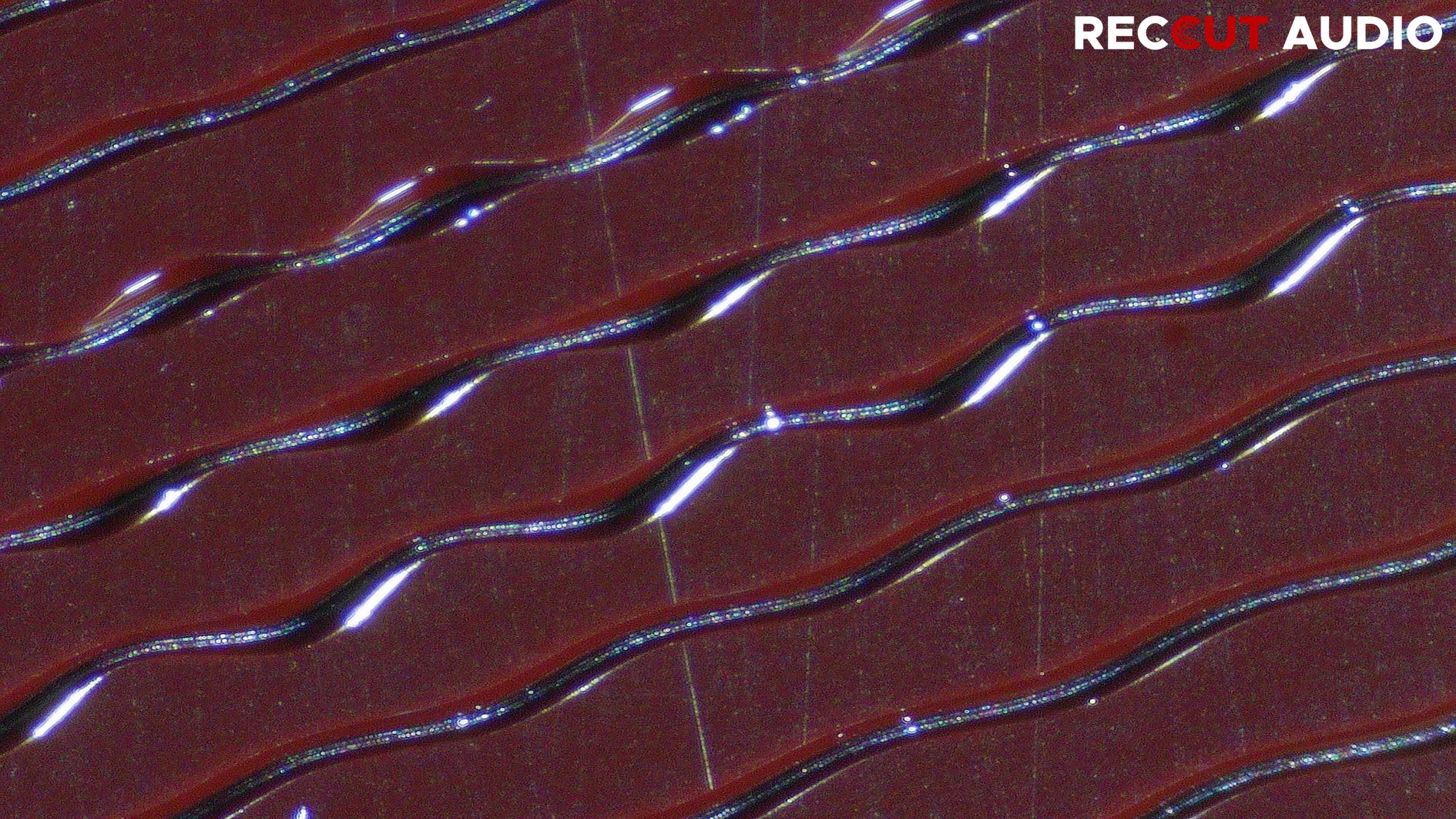

GROOVES IMAGES EXAMPLES LENS A

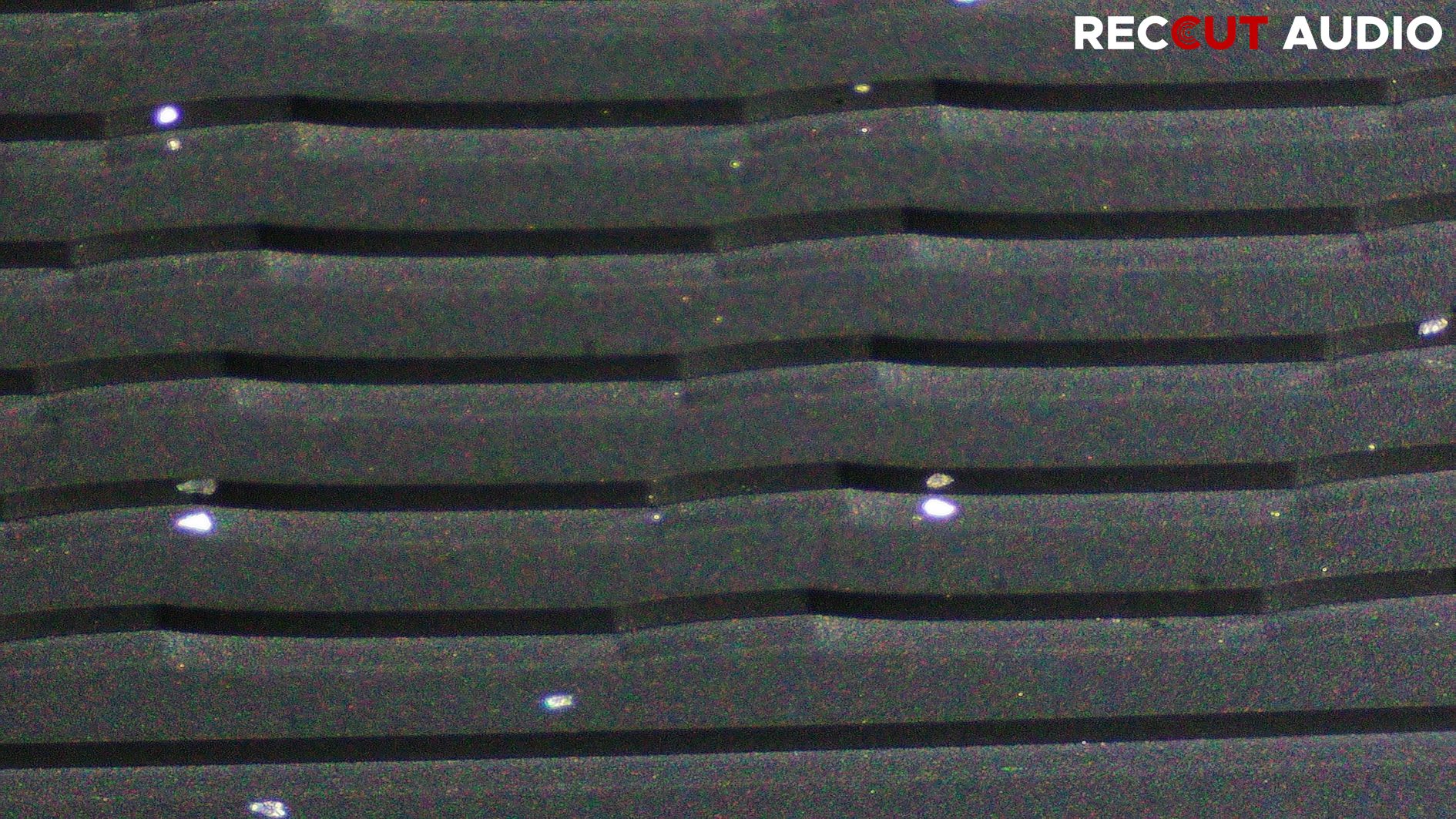

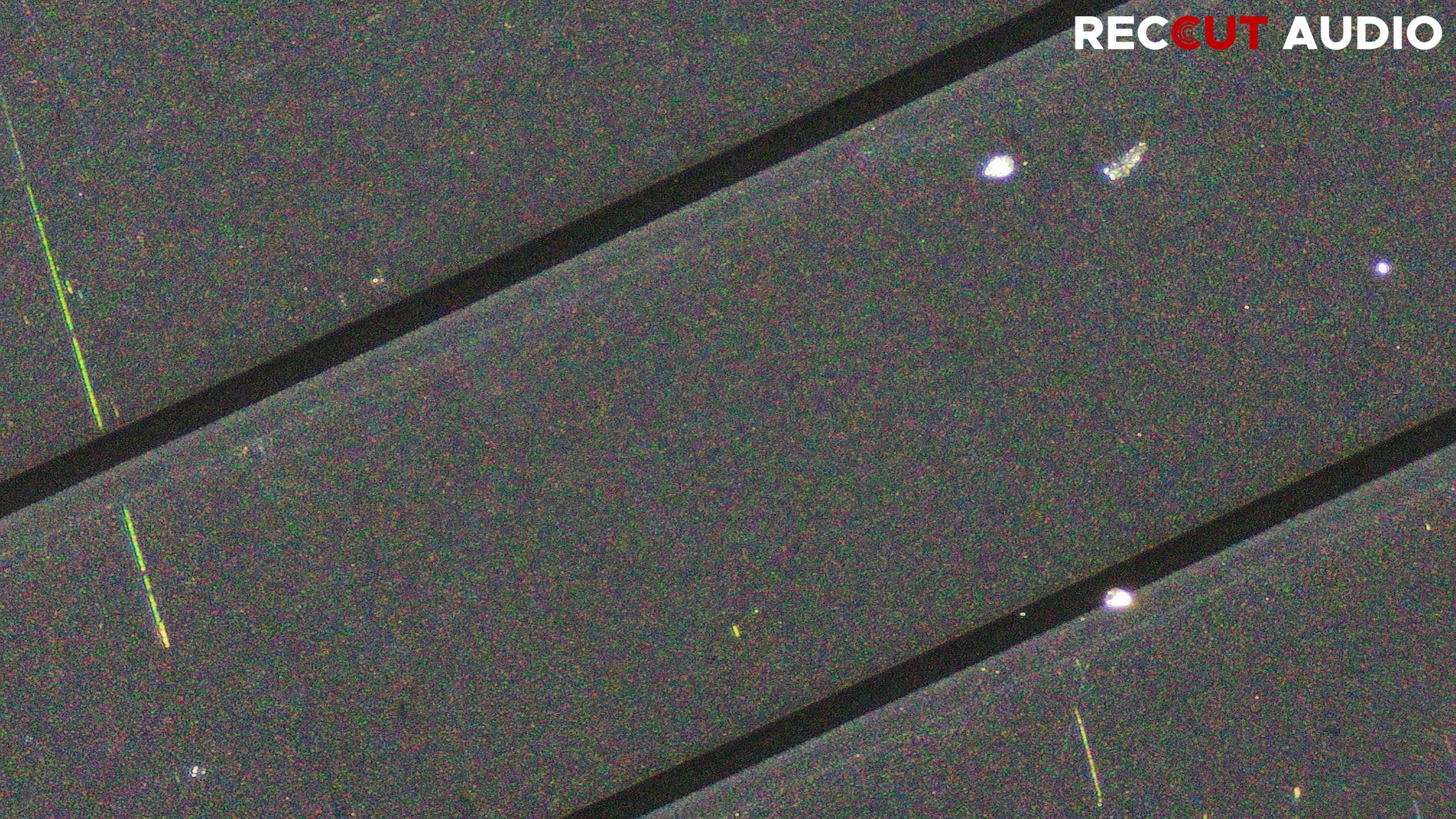

GROOVES IMAGES EXAMPLES LENS D

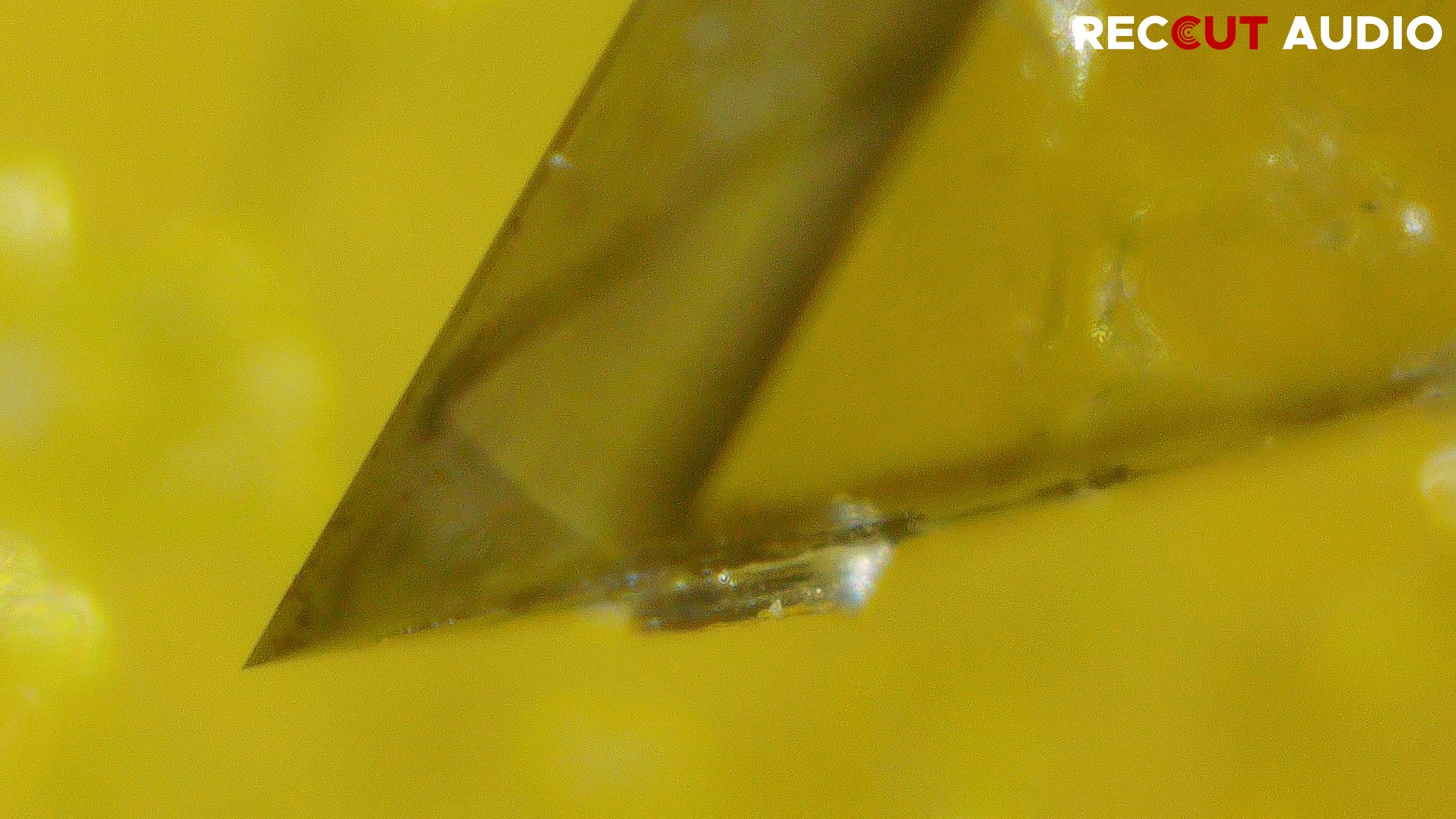

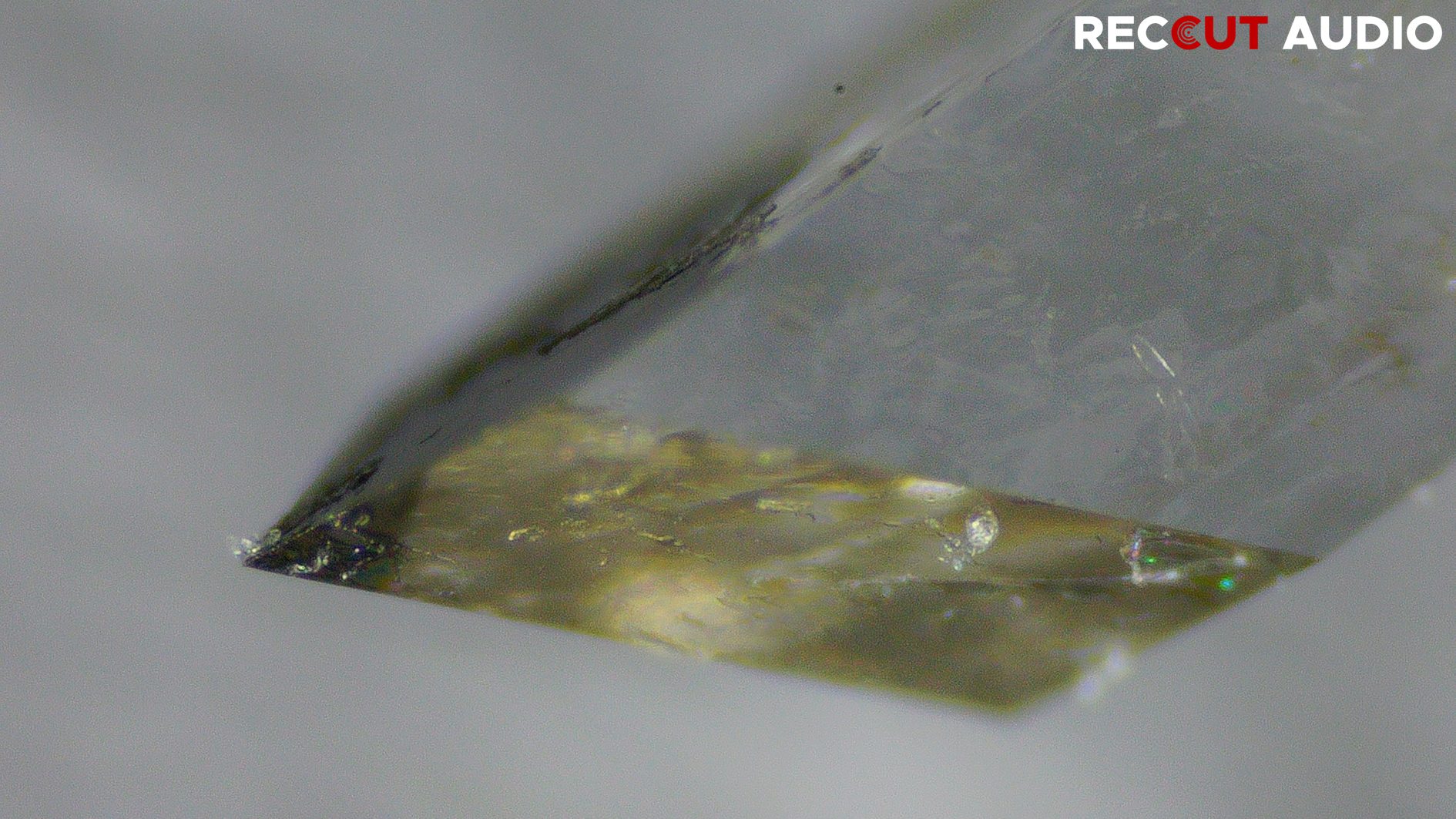

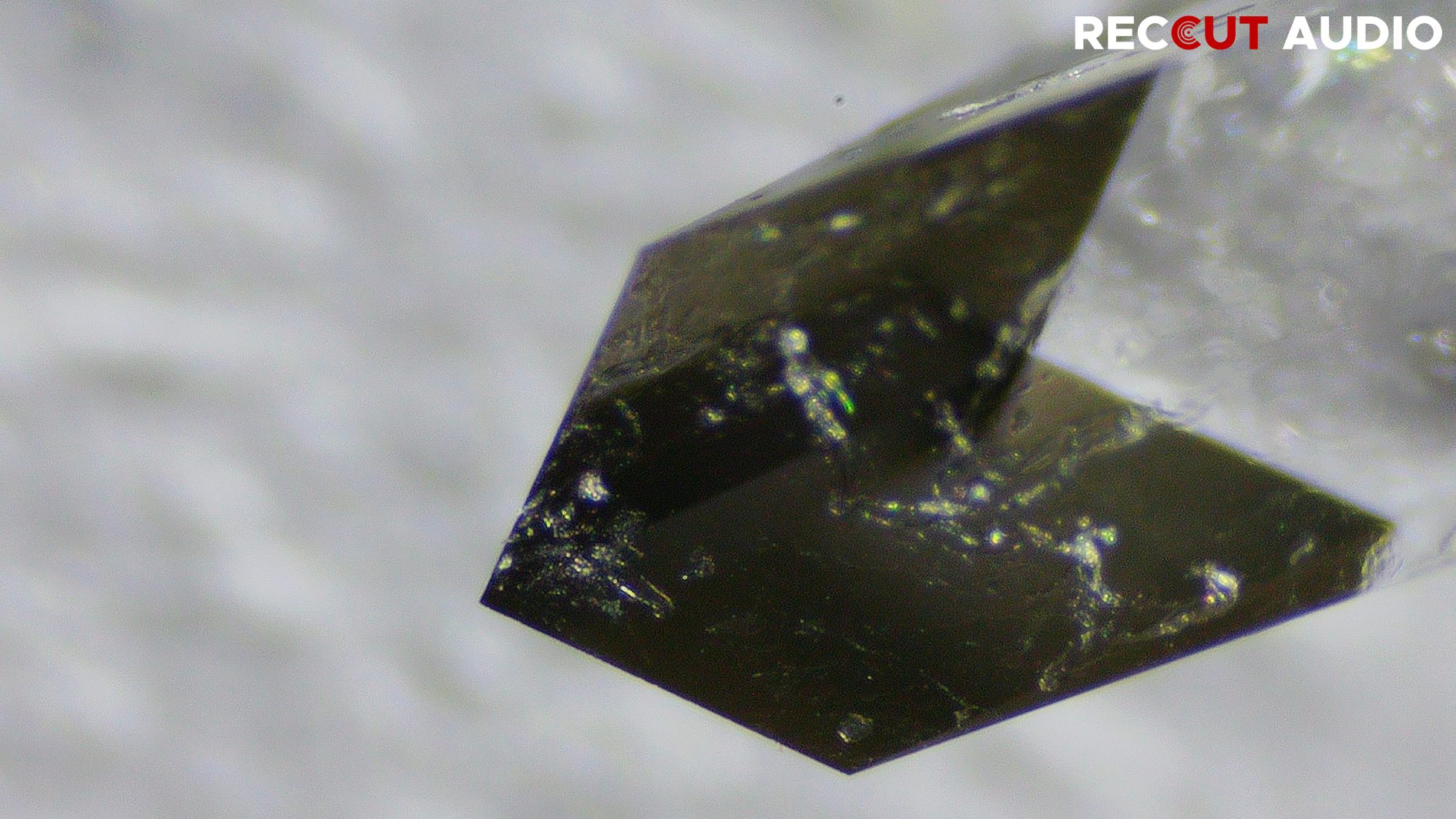

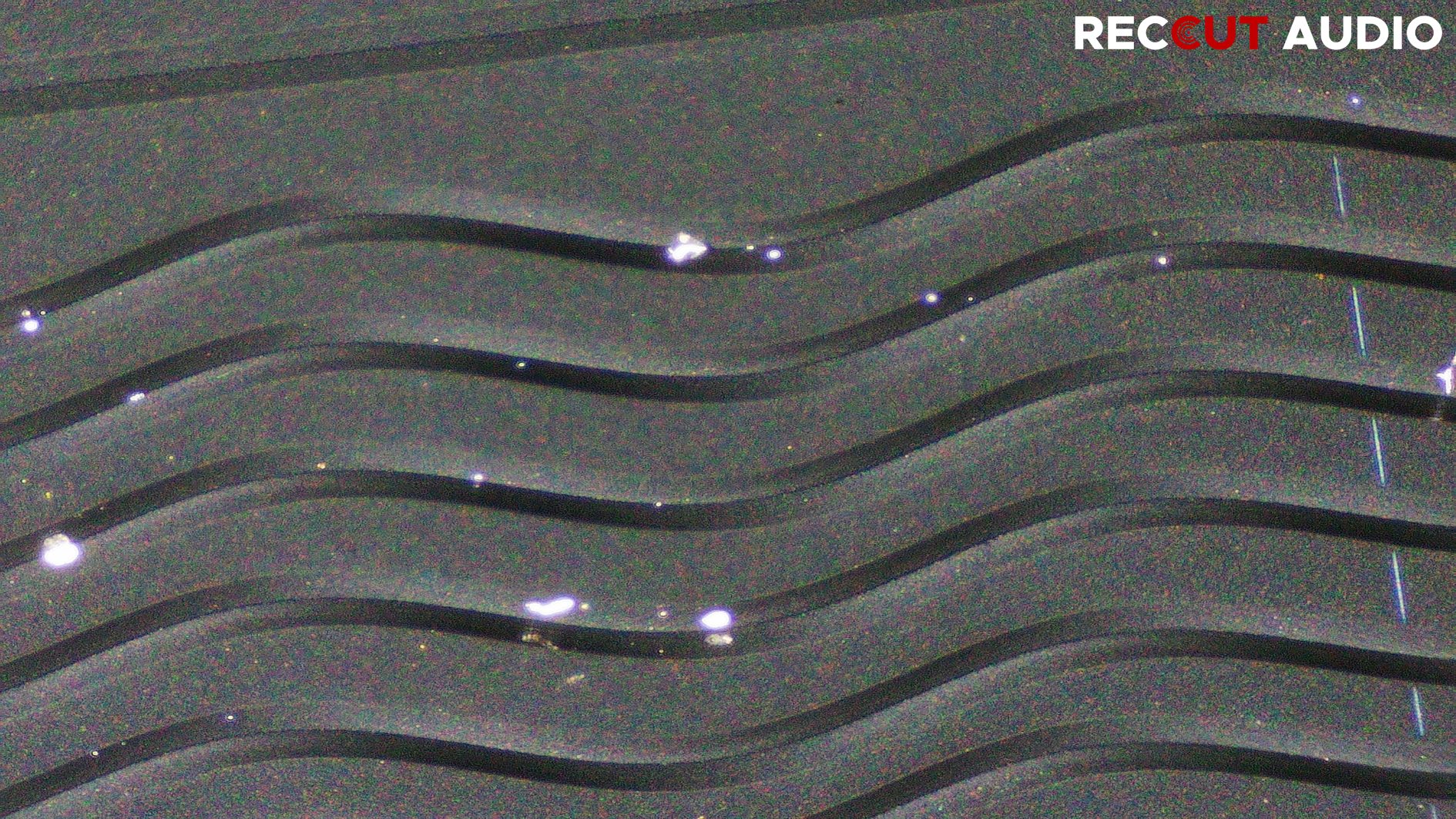

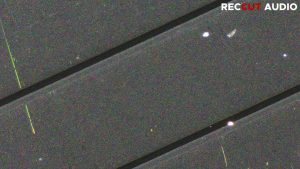

GOOD DIAMOND IMAGES EXAMPLES LENS D

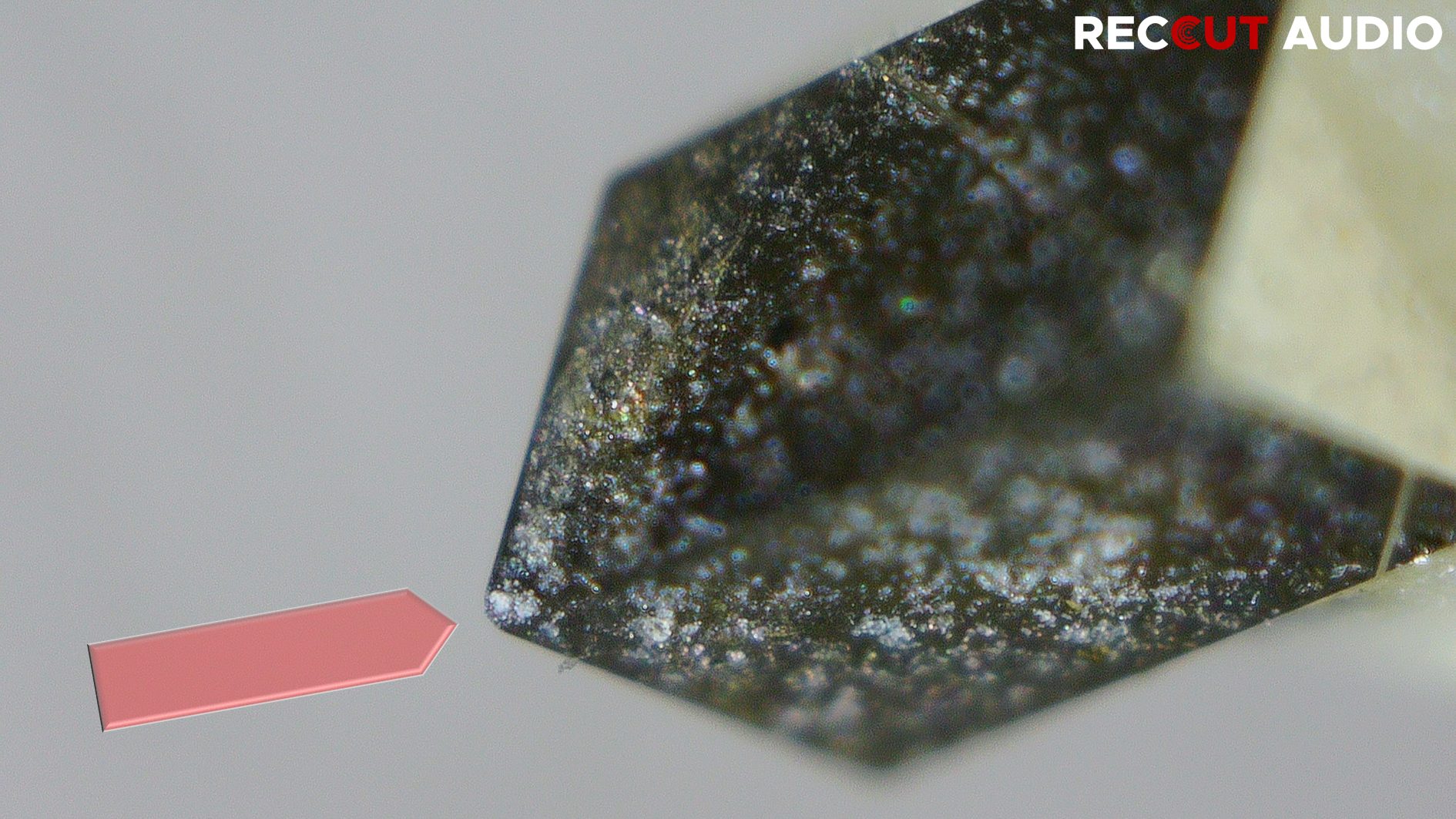

BAD DIAMOND IMAGE EXAMPLE LENS D
SOLID CONSTRUCTION, EASY INSTALLATION
The entire microscope unit is manufactured with high precision and ensures maximum stability during any movement.
Thanks to its special mounting system, the microscope can be swung over the record area or moved aside to make record changes easier.

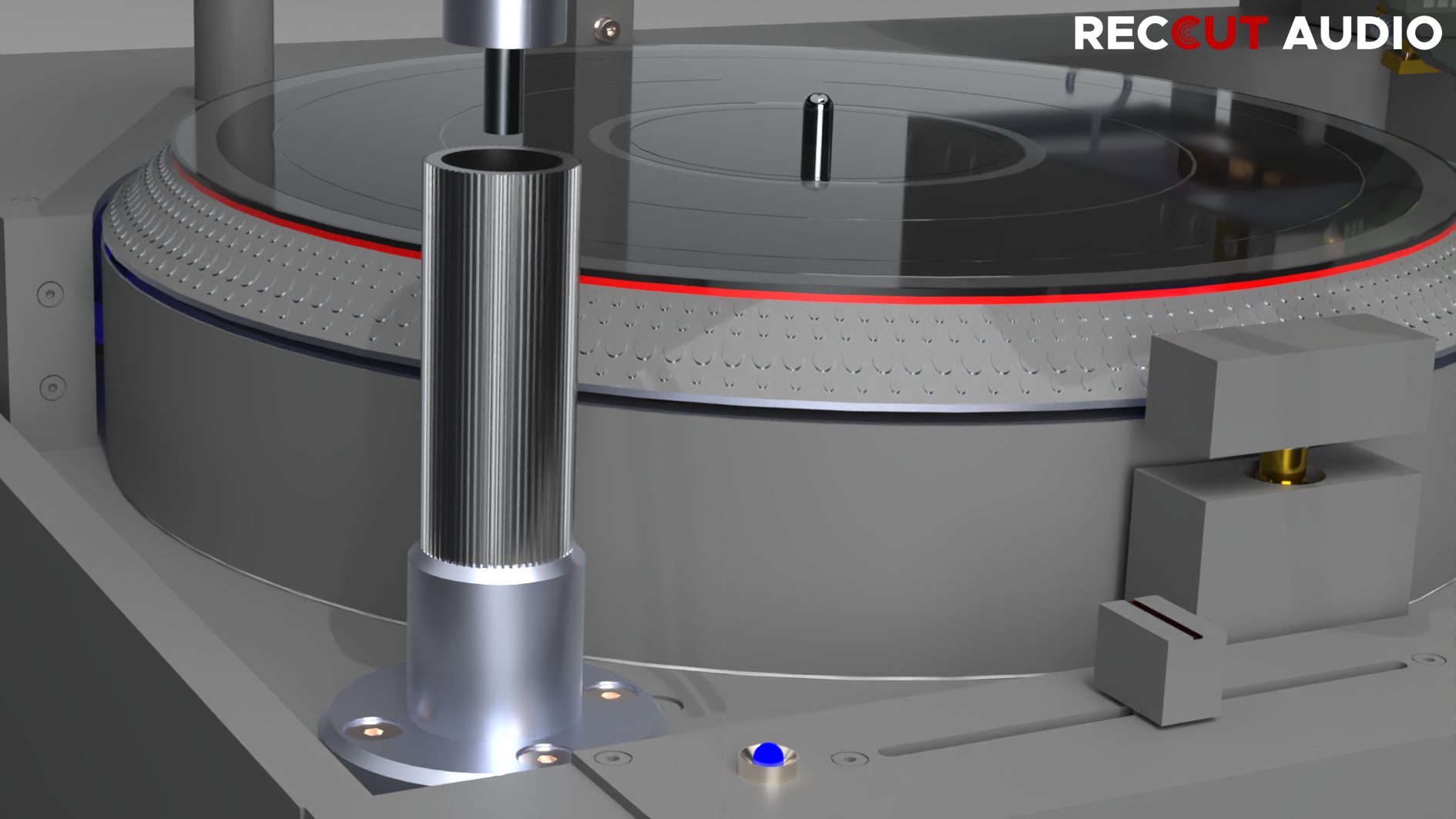

Installation is quick and simple: screw the holding sleeve into the FP9 adapter, insert the microscope – and measurement can begin.
