SUCTION UNIT
SU9
The reliable suction unit for your cutting device
high performance, low noise
our "chip remover"

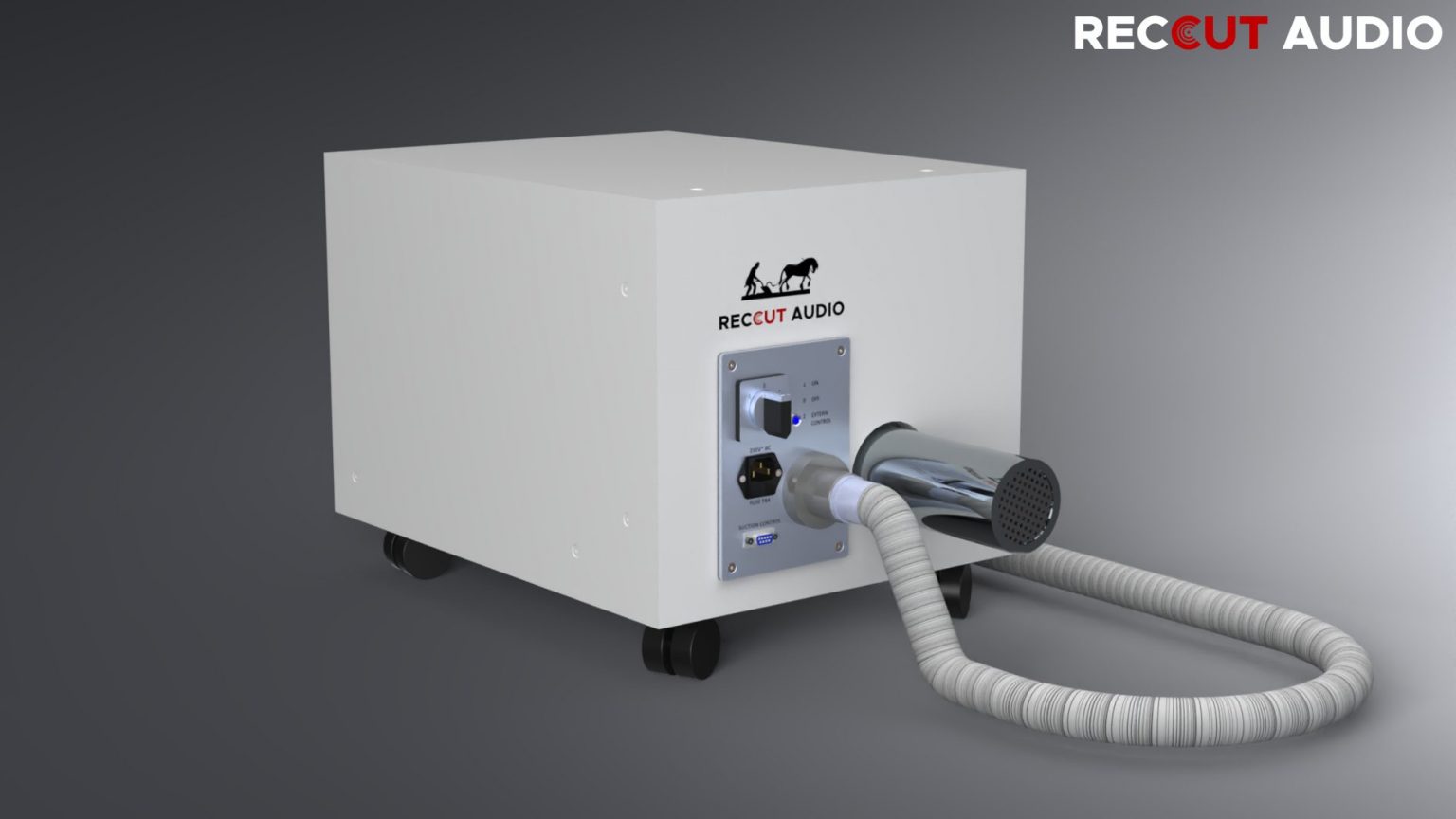

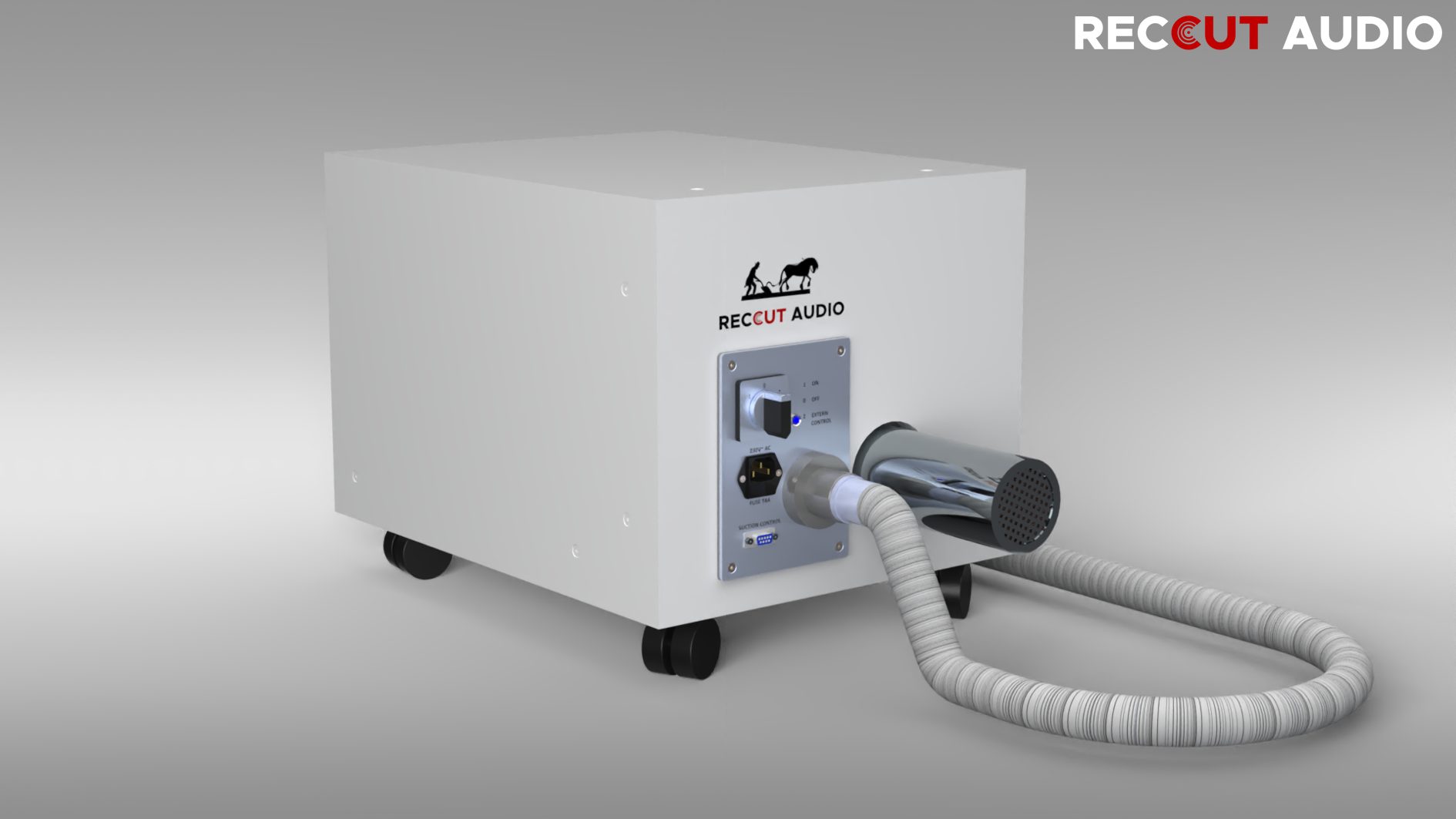

SU9 suction system – compact power for clean performance
The SU9 Suction System combines powerful performance, intelligent control, and exceptional noise reduction in a compact and mobile design. Engineered for precision environments, it ensures efficient extraction with minimal maintenance.
POWERFUL & EFFICIENT
Equipped with a high-performance side-channel / rotary blower, the SU9 delivers up to -130 mbar suction power and operates at speeds up to 3320 rpm. The robust motor provides 370W (50Hz) or 450W (60Hz) of power for consistent, reliable performance under demanding conditions.
SMART CONTROL SYSTEM
The SU9 offers flexible operation with three convenient modes:
- Level 0: Off
- Level 1: Permanently On
- Level 2: External Control
An LED indicator provides clear visual feedback, while the 9-pin D-SUB remote control allows the unit to automatically start and stop with your cutting process—ensuring seamless integration and energy efficiency.

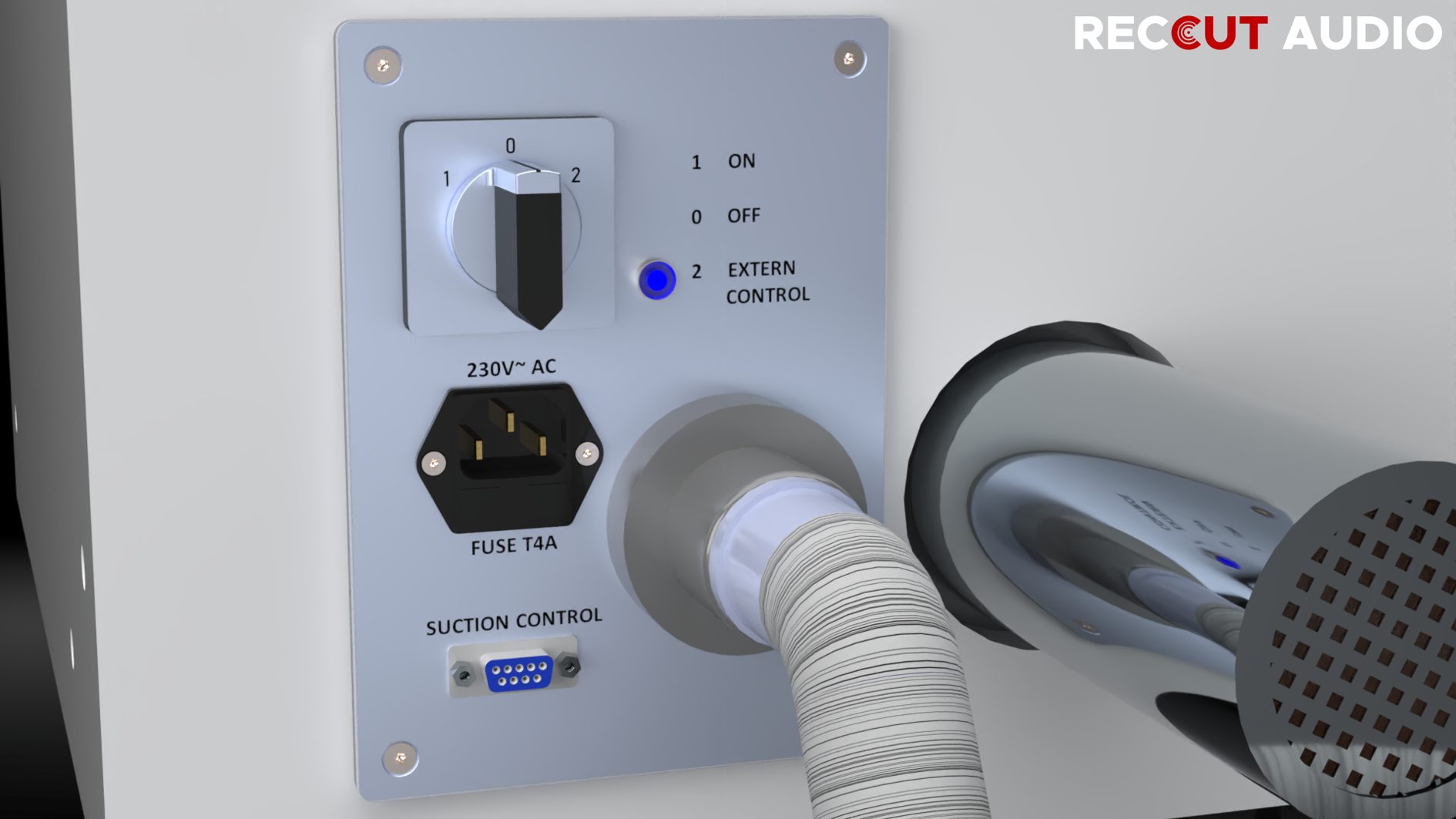

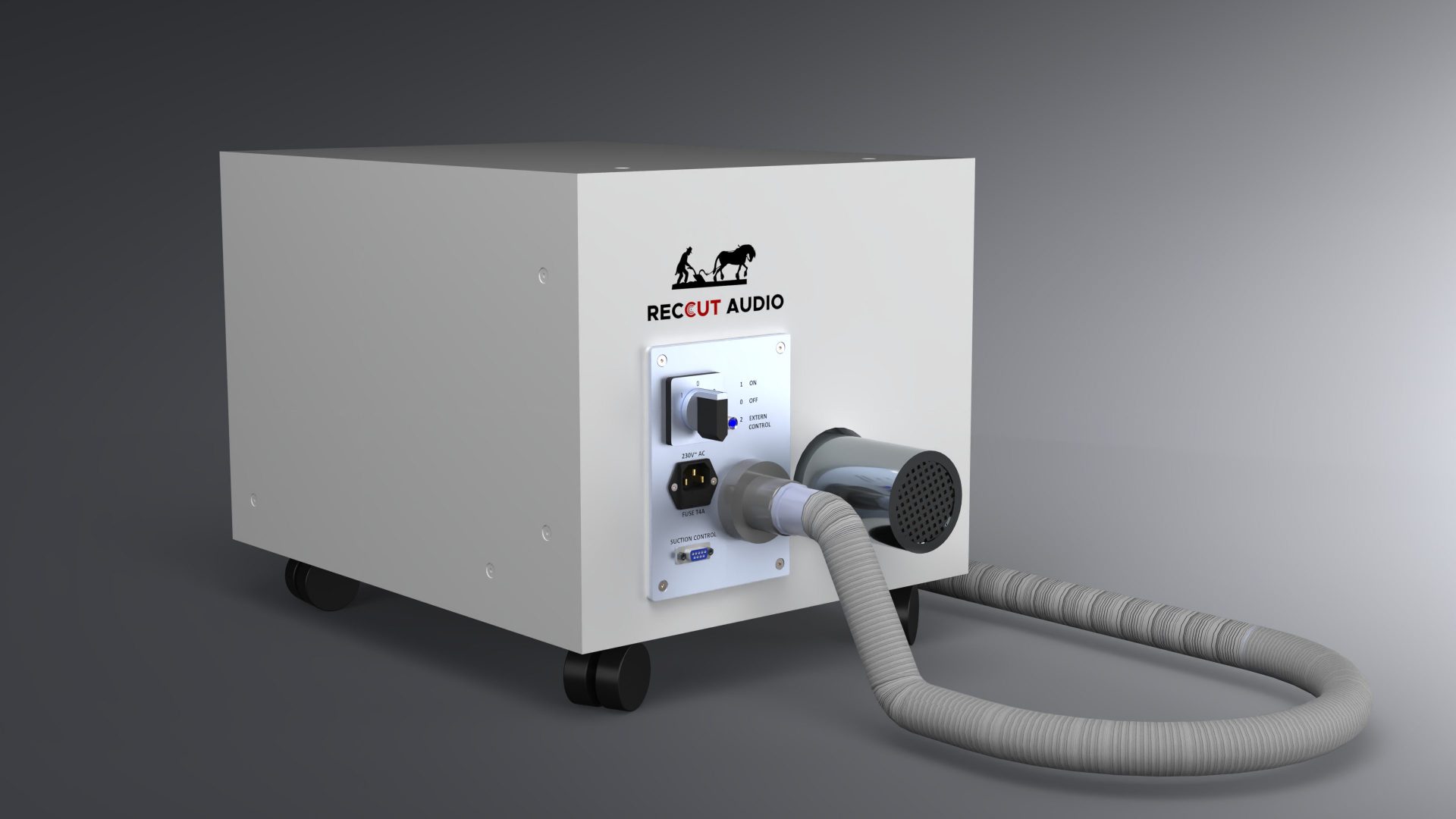

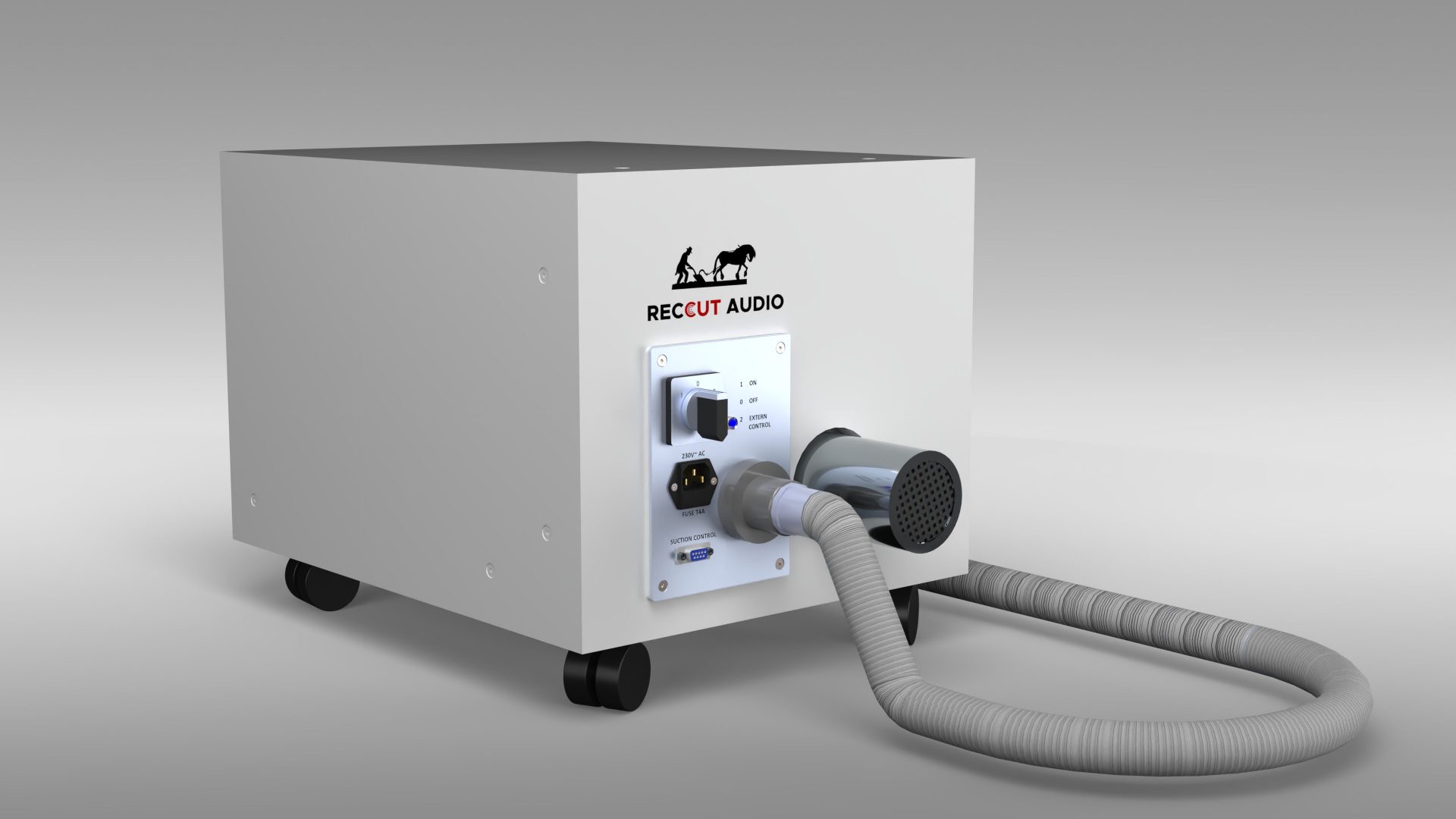

CONNECTIONS PANEL
Power connection, operating switch, LED indicator light, remote control connection, hose connection
QUIET & DURABLE
Designed for continuous operation, the SU9 features dual cooling systems—a mechanical fan on the motor and an internal electric cooling fan—to maintain optimal temperatures.

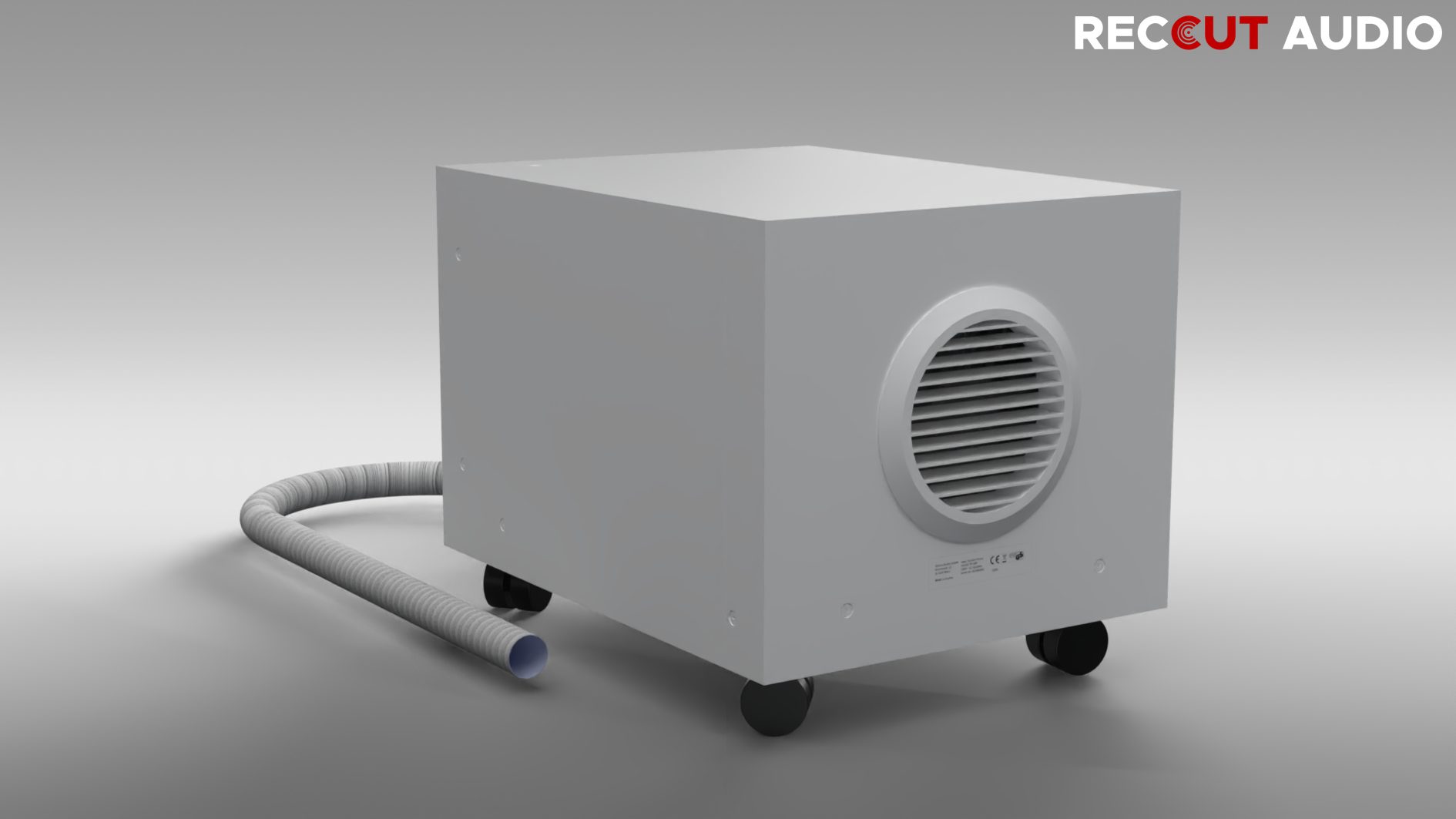

The wooden, sound-insulated housing with acoustic foam and vibration-damping rubber mounts ensures quiet performance, further enhanced by the integrated silencer.

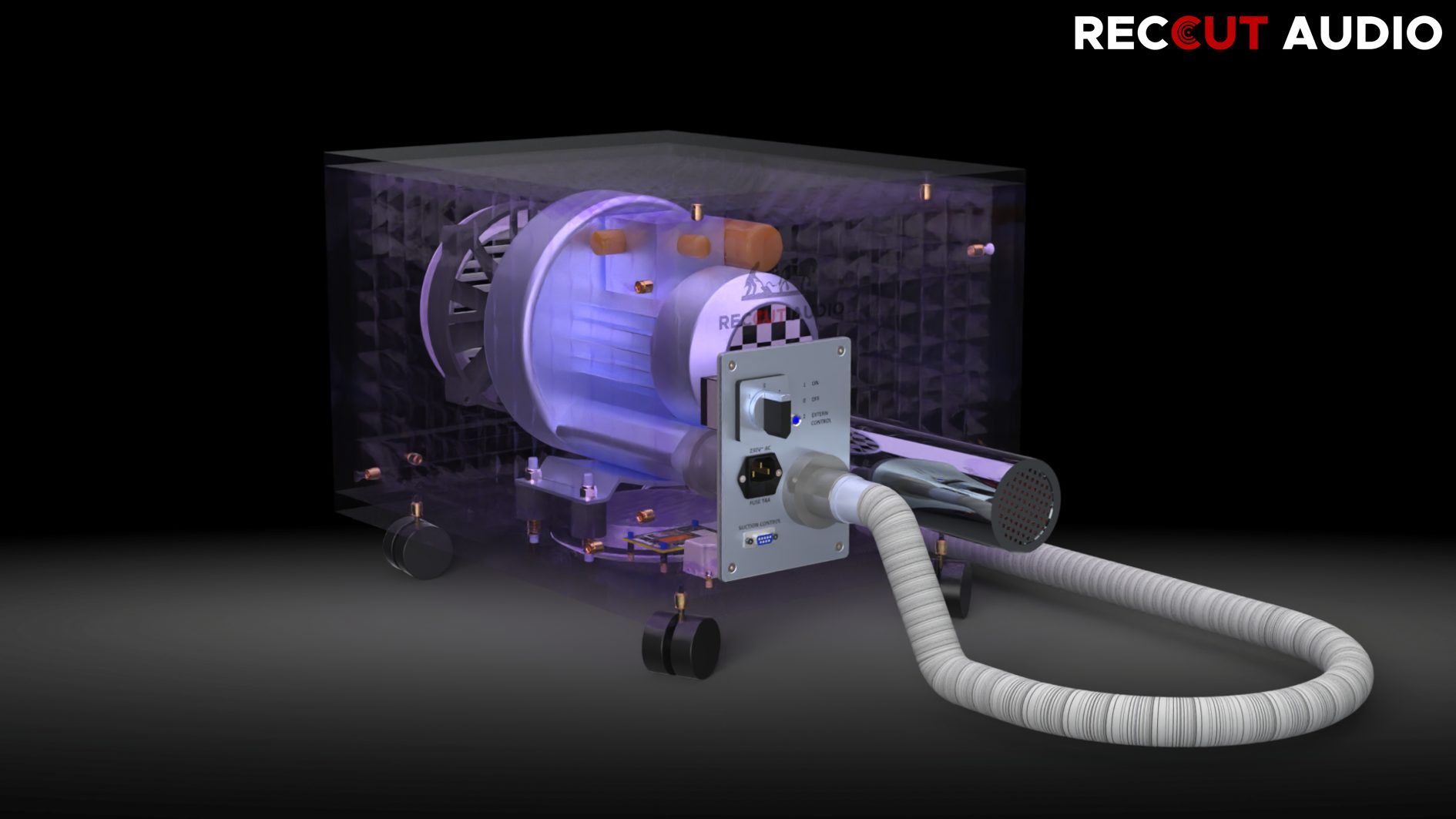

A GLIMPSE INTO THE INSIDE
SU9 SUCTION UNIT - Internal structure of COOLING AND DAMPING SYSTEM
COMPACT & MOBILE DESIGN
Despite its powerful performance, the SU9 remains compact and portable:
- Width: 384mm (15.12”)
- Height: 330mm (386mm with casters)
- Depth: 500mm (662mm with silencer)
- Weight: 22.2kg (49lbs)

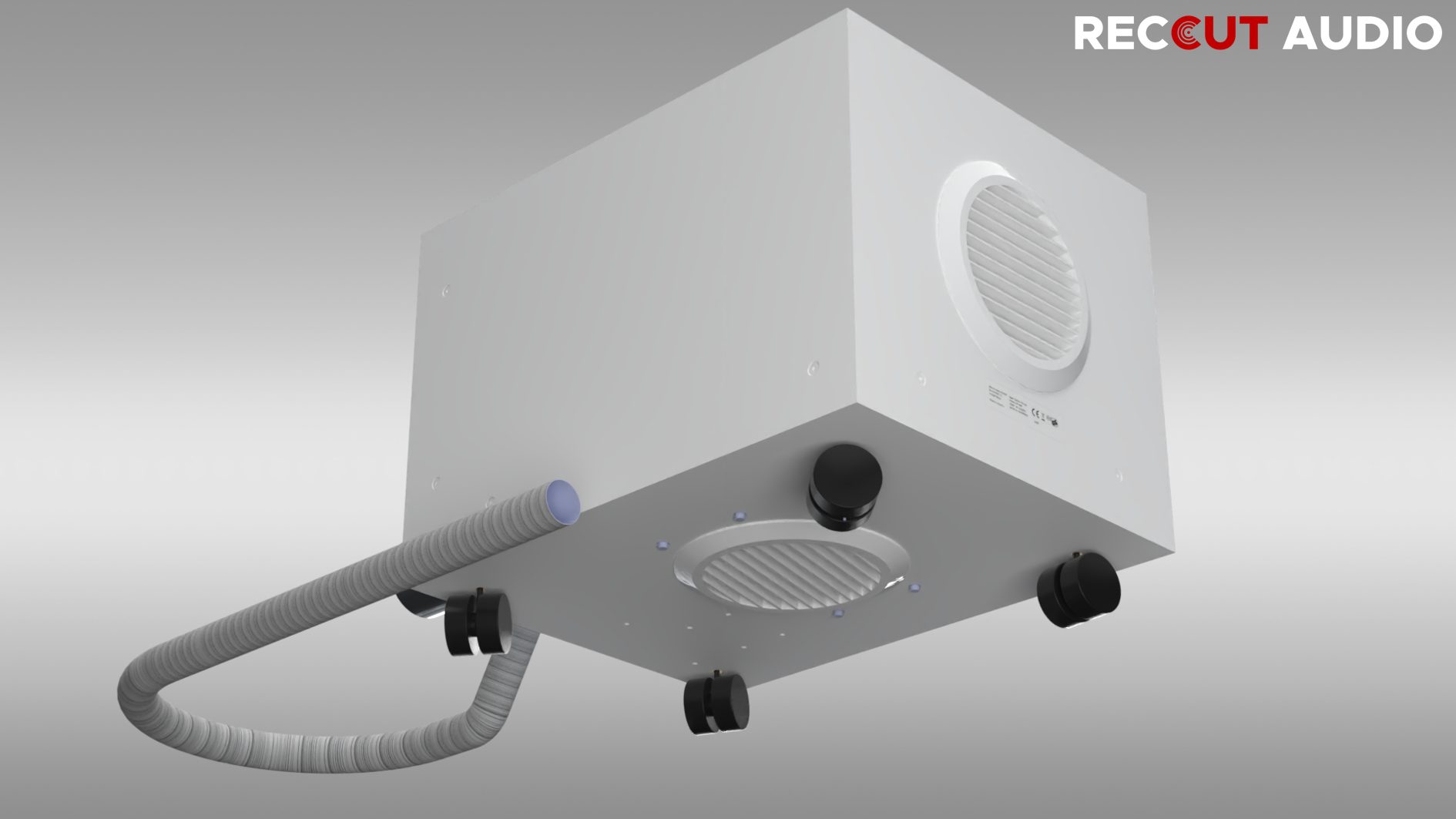

Lockable wheels allow easy mobility and stability during operation.

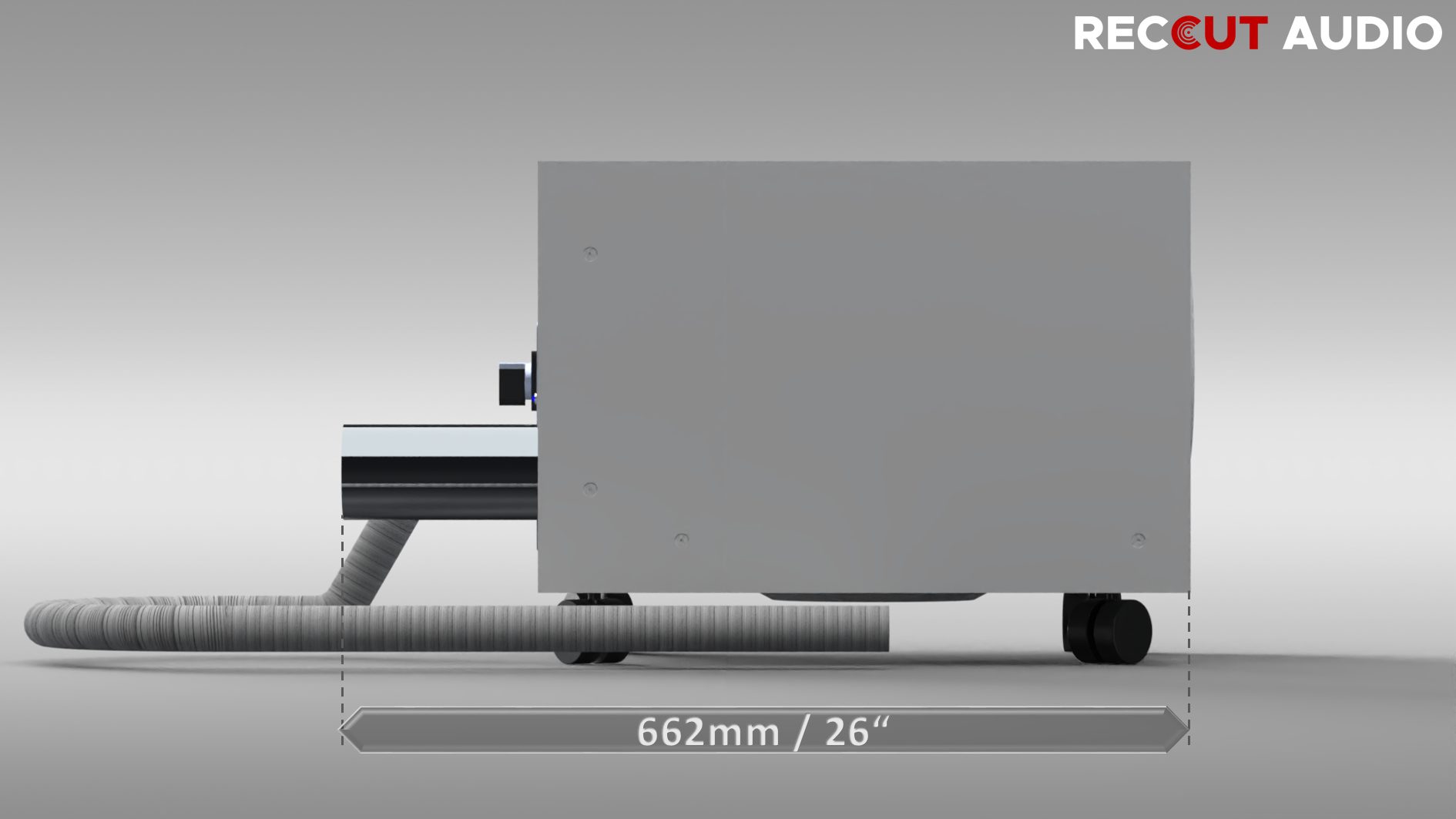

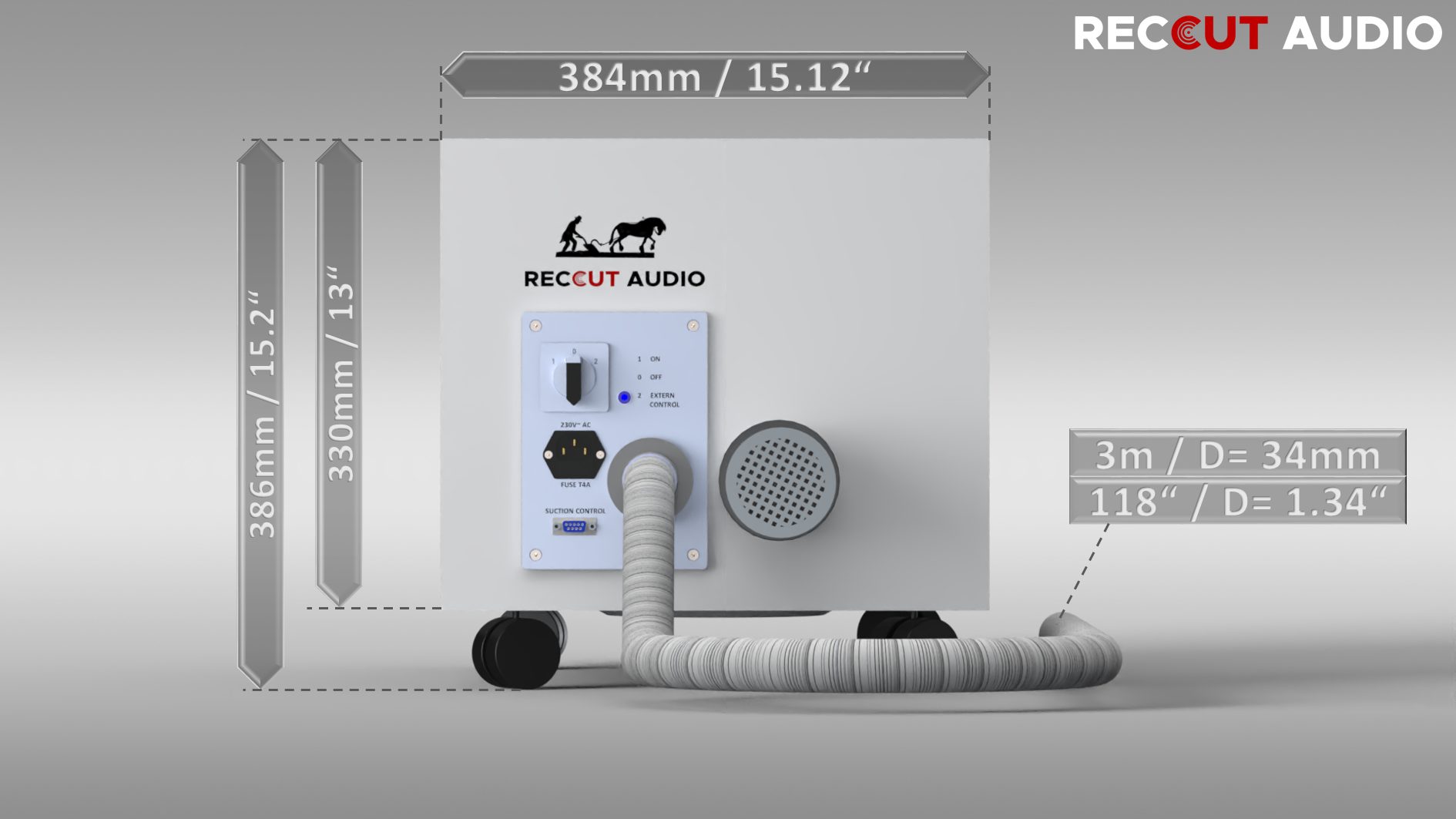

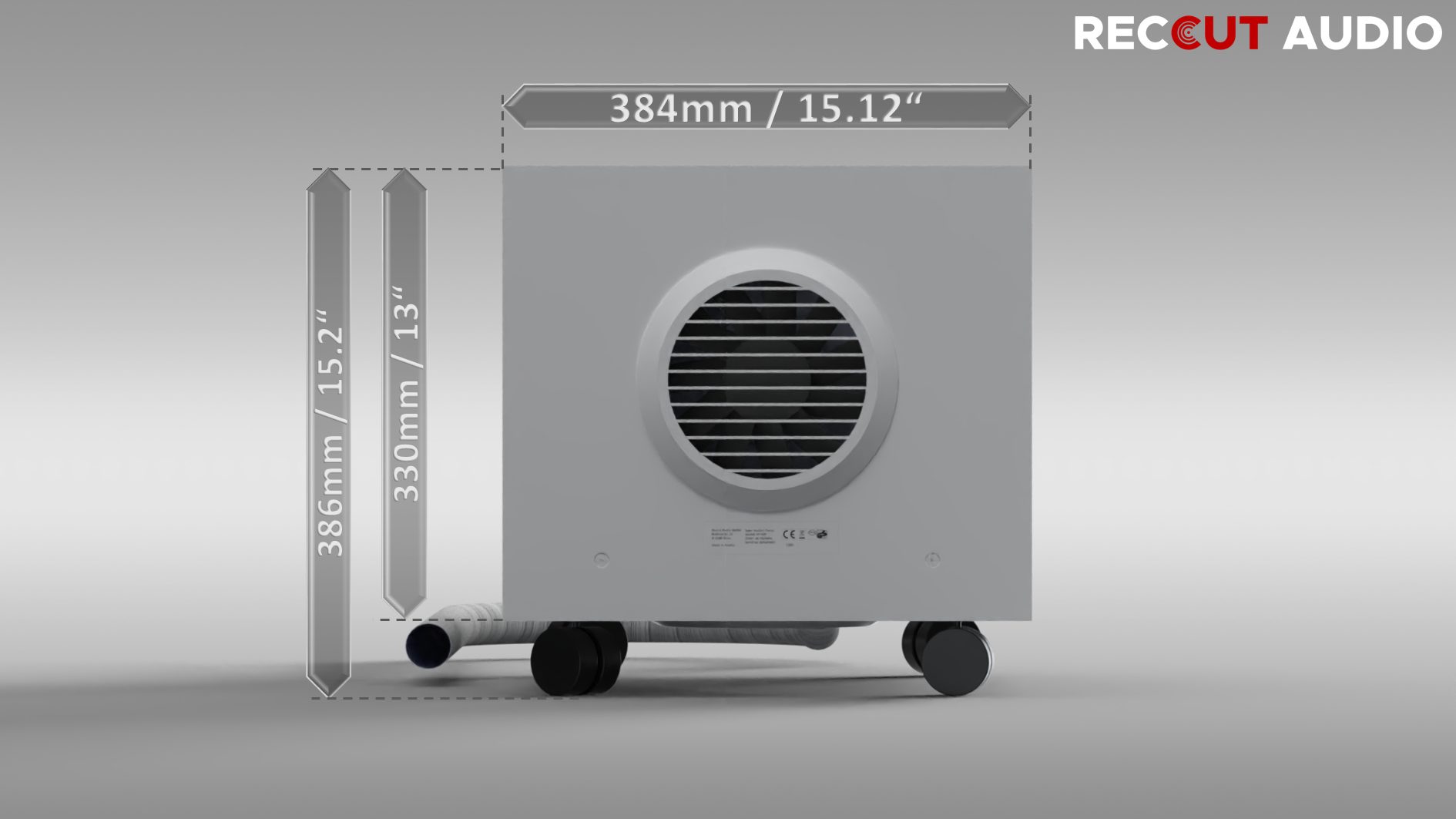

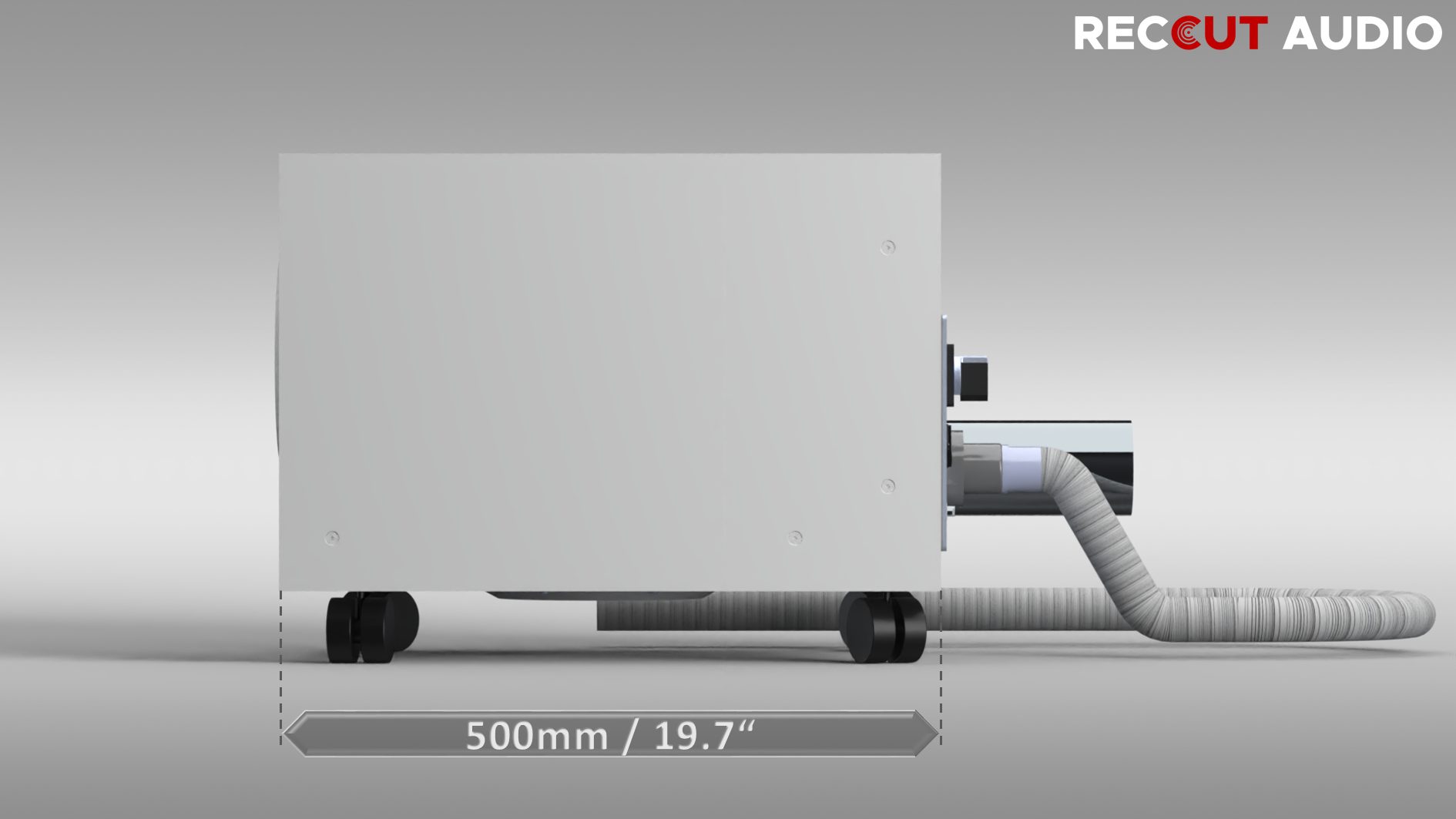

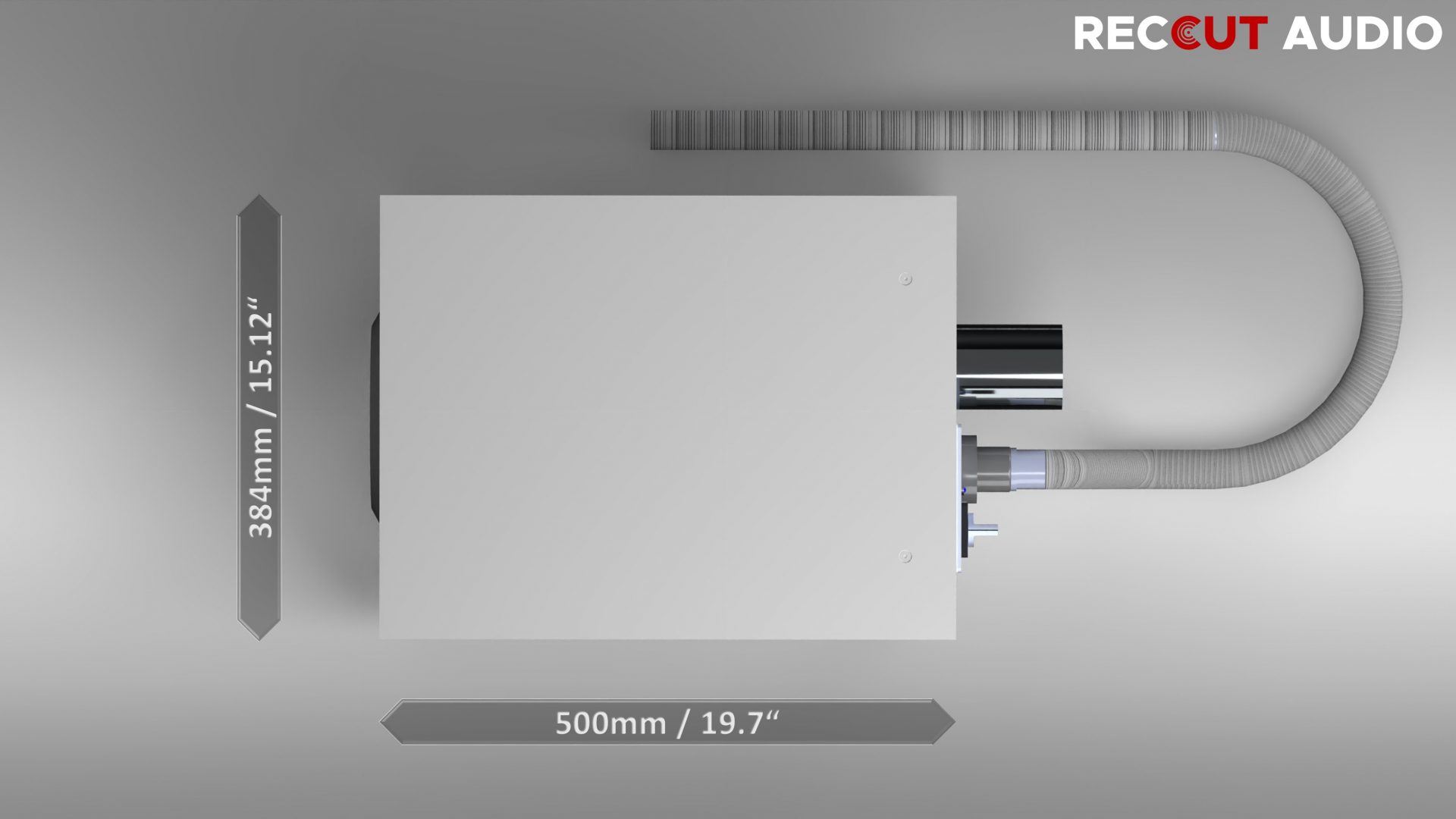

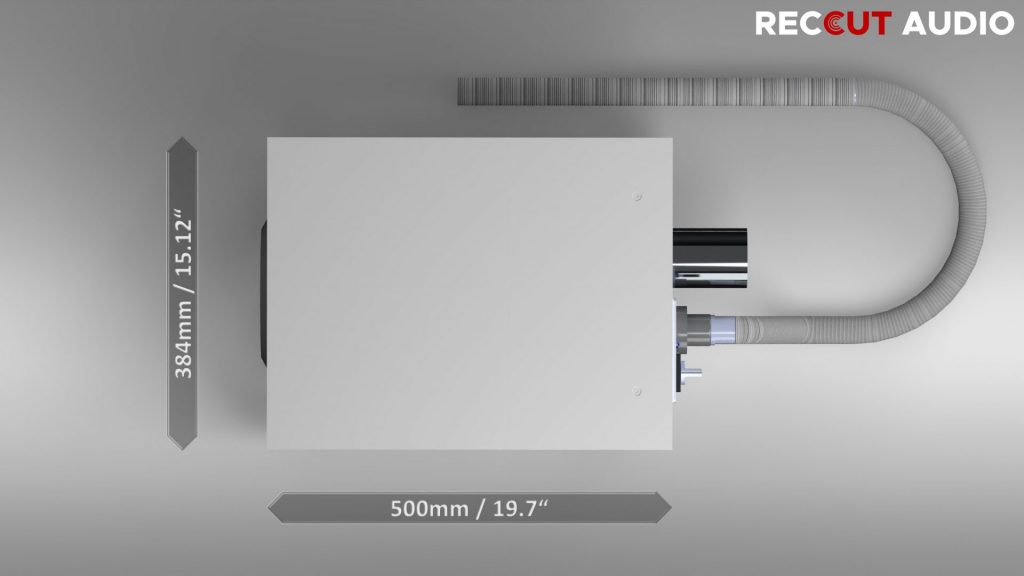

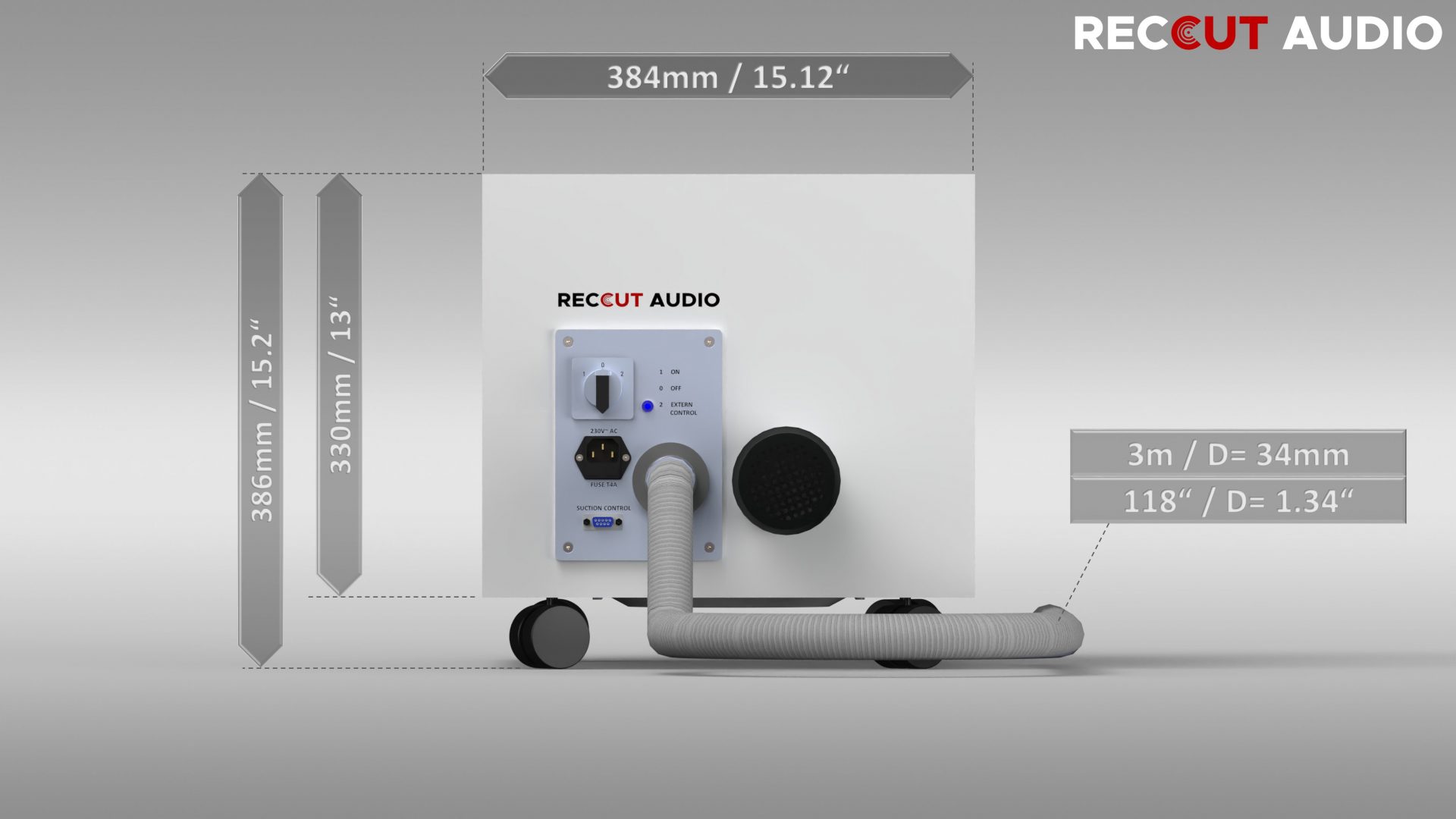

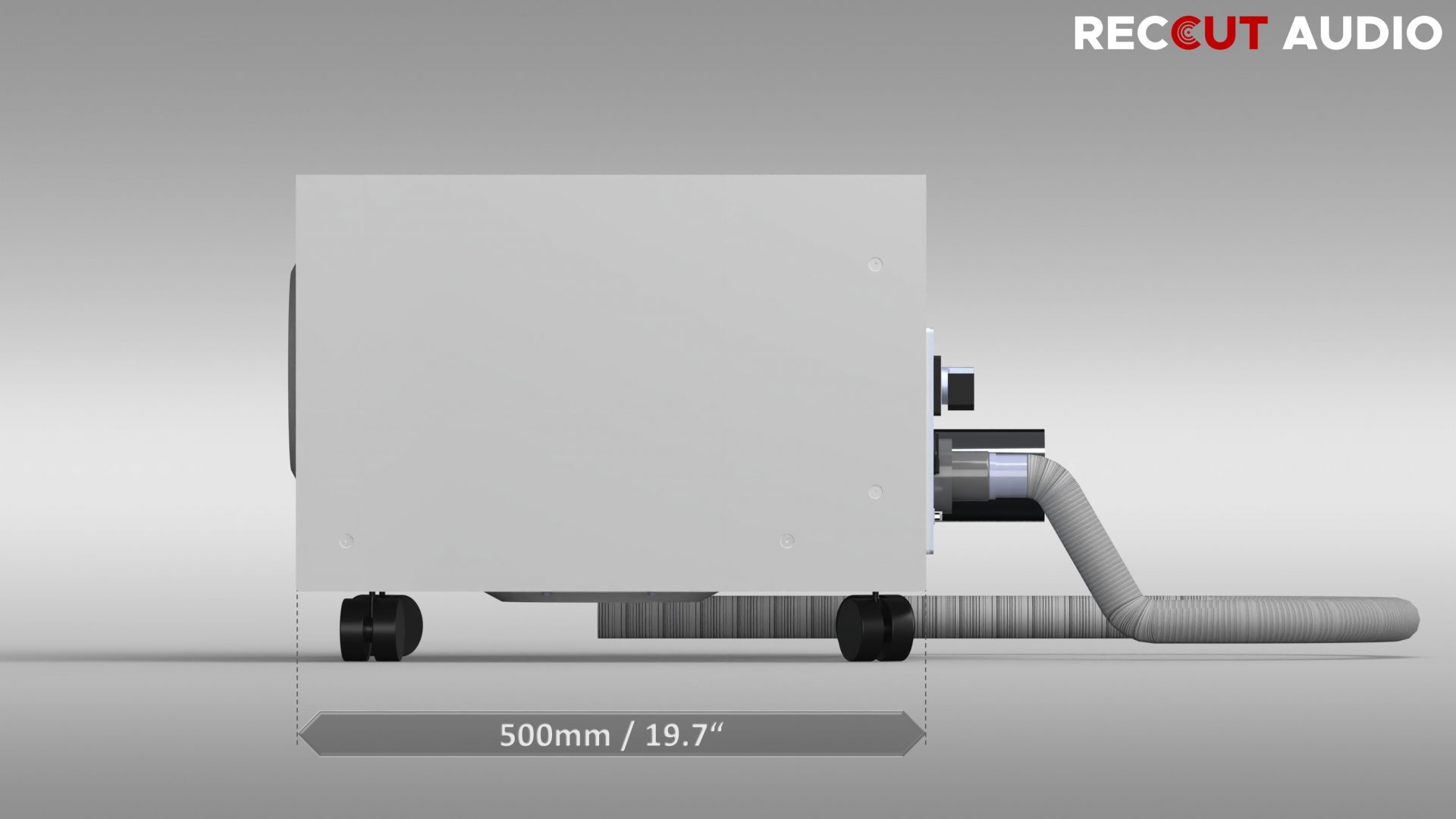

SU9 SUCTION UNIT DIMENSION

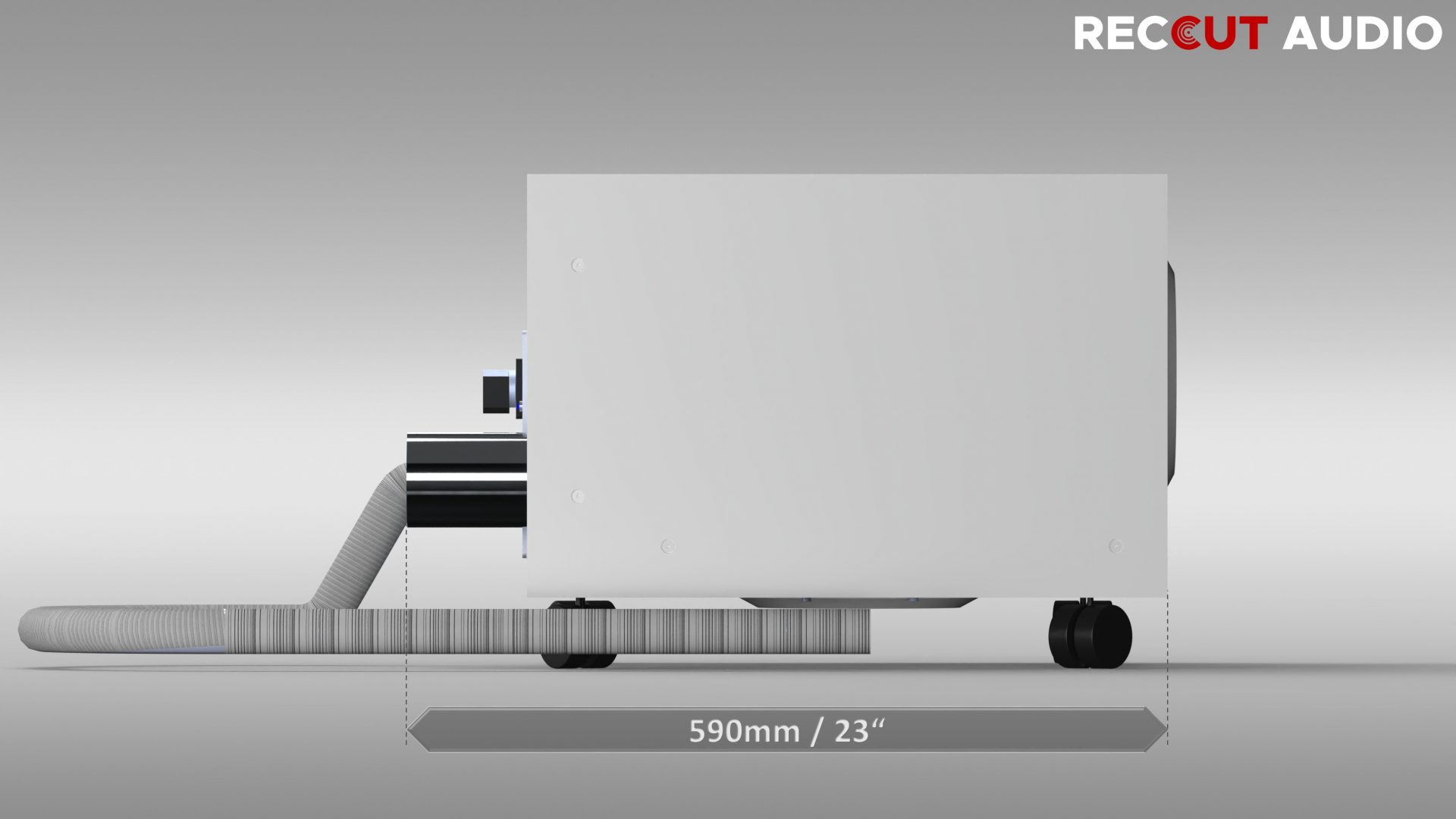

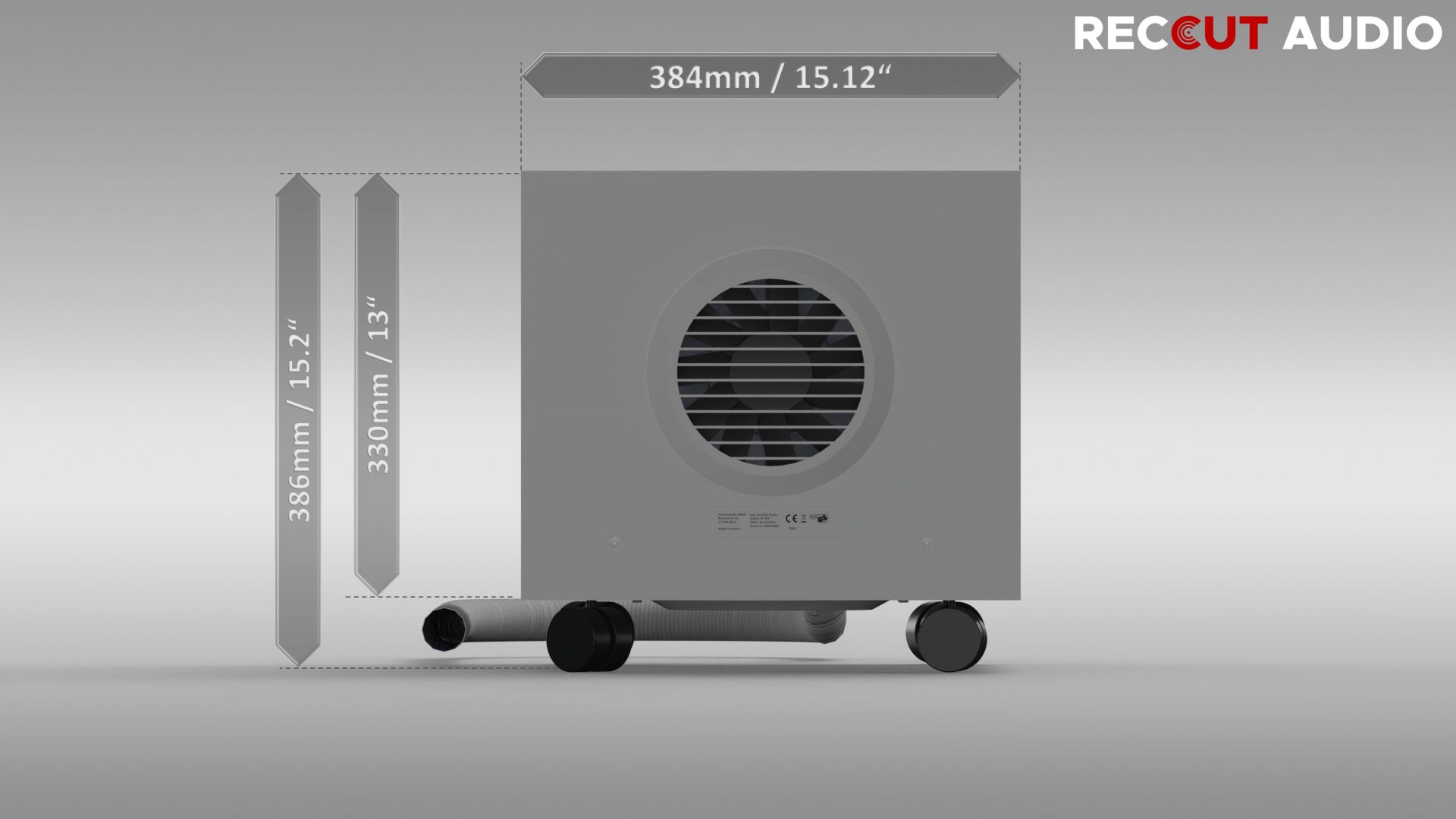

SU9 SUCTION UNIT SIZE
VERSATILE CONNECTIVITY
With a 40mm hose connection (adapter for 34mm included) and a 3m suction hose leading to the FP9 main unit, the SU9 ensures optimal airflow and compatibility across applications.
